Kawasaki Z1000SX - Service manual > Frame

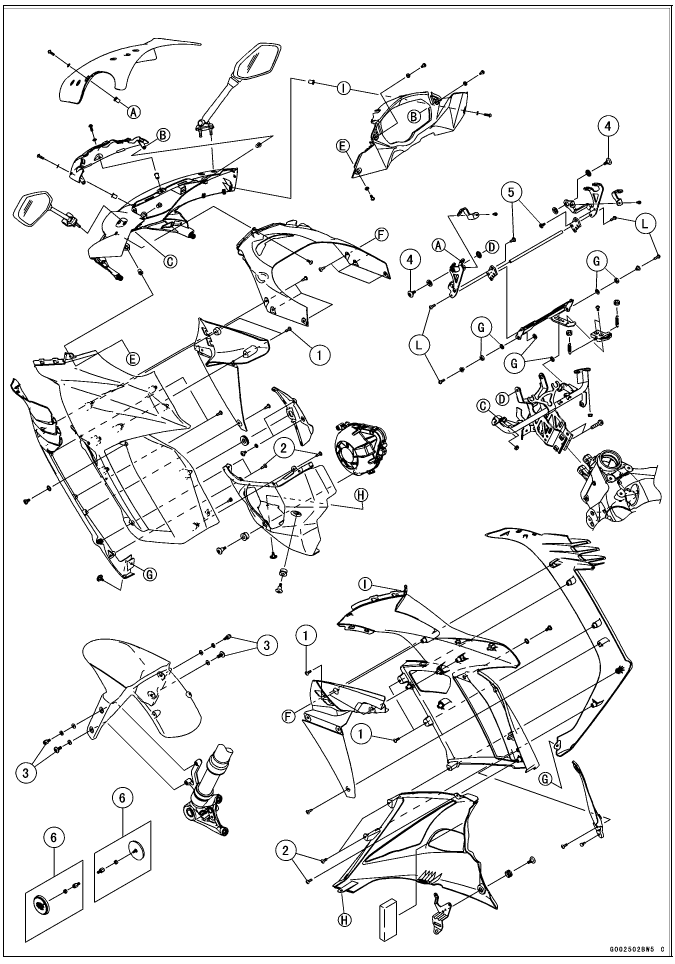

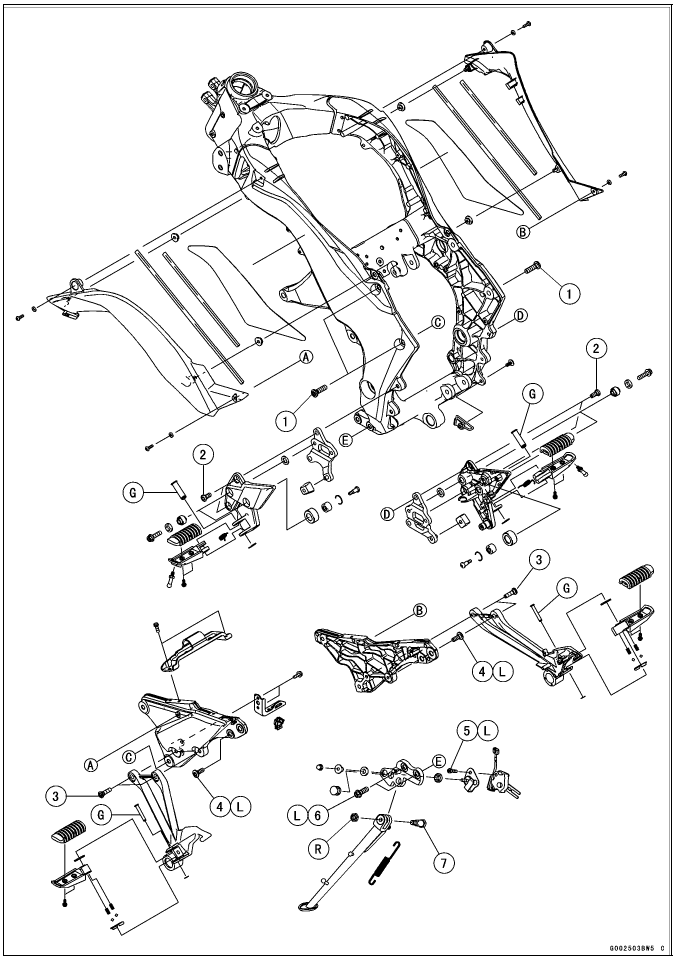

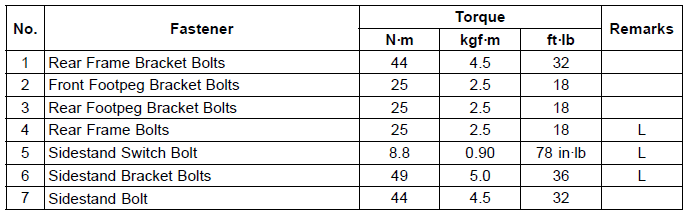

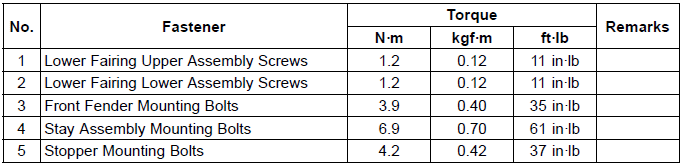

Exploded View

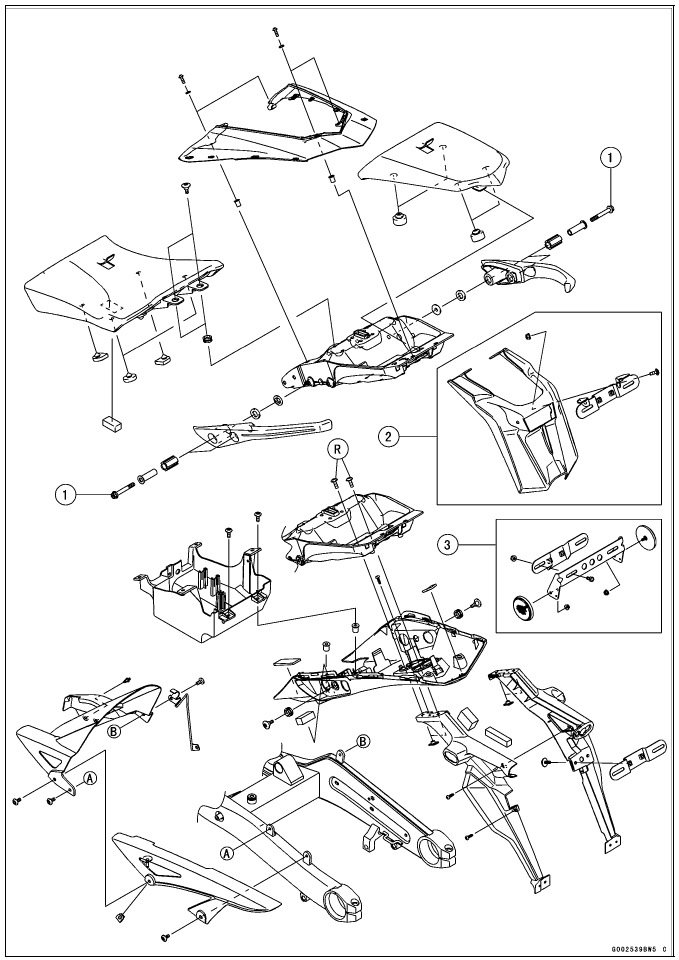

6. US, CA and CAL Models
G. Apply grease.
L: Apply a non-permanent locking agent.
G: Apply grease.
L: Apply a non-permanent locking agent.
R: Replacement Parts
2. AT Model
3. US, CA, and CAL Models
R: Replacement Parts
See also:
Kawasaki Z1000SX - Service manual > Handlebar
Handlebar Removal Remove: Clutch Lever Clamp Bolts [A] Clutch Lever Assembly [B] Left Switch Housing [C] Handlebar Weight [D] Remove: Front Master Cylinder [A] (see Front Master Cylinder Removal in the Brakes chapter) Right Switch Housing [B] Throttle Case [C] Handlebar Weight [D] Throttle Grip [E] Remove: Handlebar Bolt [A] Handlebar Loosen the upper front fork clamp bolt [A]. Remove: Handlebar Holder Bolt [B] Handlebar Holder [C]
Kawasaki Z1000SX - Service manual > Seats
Rear Seat Removal Insert the ignition switch key [A] into the seat lock, turning the key clockwise, pulling the front part of the seat [B] up, and pull the seat forward.
