Kawasaki Z1000SX - Service manual > Side/Seat Covers

Side Covers

Side Cover Removal

• Remove:
  Lower Fairing (see Lower Fairing Removal)
  Bolts [A] with Washers
• Pull the side cover [B] outward to clear the stoppers [C].

Side Cover Installation

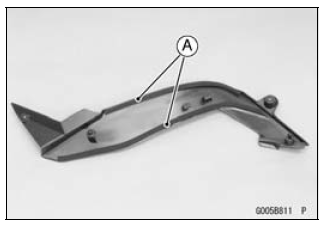

• Be sure to install the pads [A].

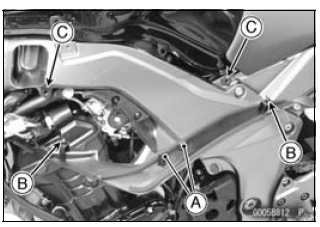

• Hang the hooks [A] to the frame.
• Insert the projections [B] into the holes [C].
• Install the bolts

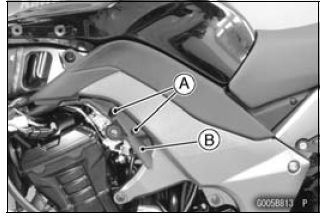

Left Lower Side Fairing Removal

• Remove:
  Left Lower Fairing (see Lower Fairing Removal)
  Bolts [A] with Washers
  Lower Side Fairing [B]

Left Lower Side Fairing Installation

• Installation is the reverse of removal, note the following.

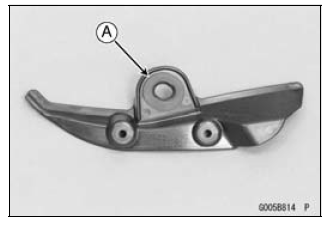

  • Be sure to install the damper [A].

Seat Covers

Seat Cover Removal

• Remove:
  Seats (see Rear/Front Seat Removal)

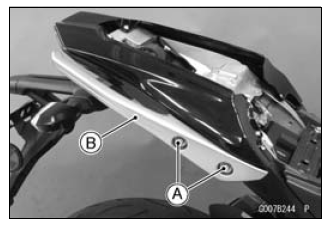

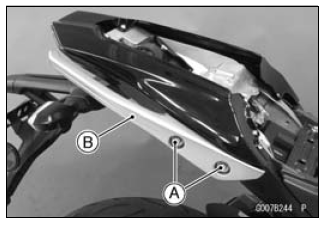

  Bolts [A] with Collars and Washers (Both Sides)
  Grab Rail [B] (Both Sides)

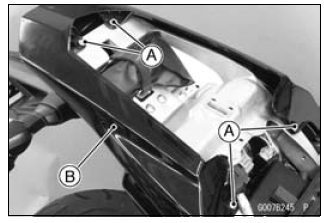

• Remove:
  Bolts [A]
  Seat Cover [B]

Seat Cover Installation

• Installation is the reverse of removal, note the following.

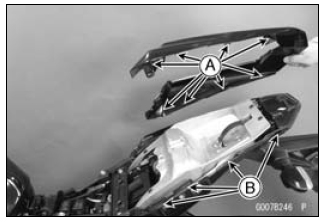

  • Fit the craws [A] into the slits [B] on the rear fender.

• Install:
  Bolts [A] with Collars and Washers (Both Sides)
  Grab Rail [B] (Both Sides)
• Tighten:
  Torque - Grab Rail Mounting Bolts: 25 N*m (2.5 kgf*m, 18 ft*lb)
