Kawasaki Z1000SX - Service manual > Lower Fairing Disassembly

Frame / Fairings / Lower Fairing Disassembly

  • Remove:
    Lower Fairing (see Lower Fairing Removal)

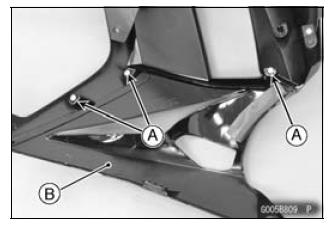

    Screws [A]
    Lower Fairing Lower [B]

Fairings

  • Remove:

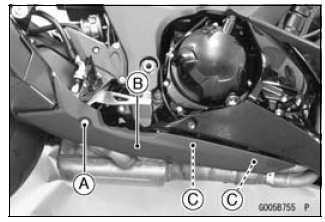

    Quick Rivet [A]
    Screws [B]
    Inner Fairing [C]

Fairings

  • Remove:

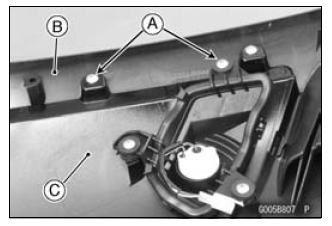

    Screws [A]
    Slat Fairing [B]
    Lower Fairing Upper [C]

Fairings

Lower Fairing Assembly

  • Installation is the reverse of disassembly, note the following.

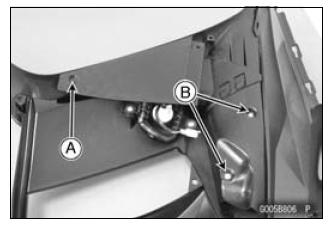

    • Insert the projection [A] into the hole [B].
    • Tighten:
      Torque - Lower Fairing Lower Assembly Screws: 1.2 N*m (0.12 kgf*m, 11 in*lb)

Fairings

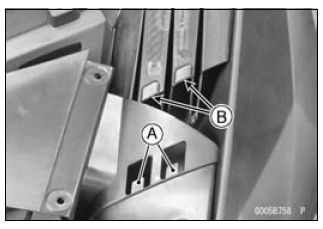

  • Insert the tabs [A] into the slots [B].

Fairings

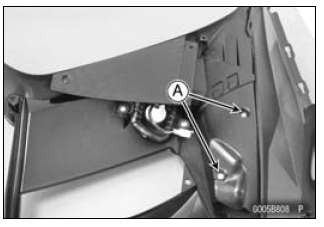

  • Tighten:
    Torque - Lower Fairing Upper Assembly Screws [A]: 1.2 N*m (0.12 kgf*m, 11 in*lb)

Fairings

Rear Lower Fairing Removal

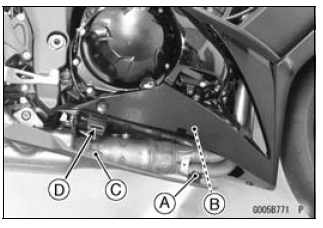

  • Remove the bolt [A].

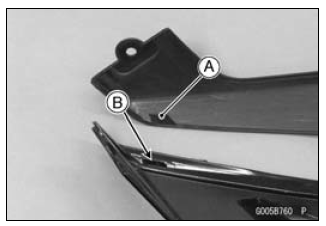

  • Pull out the rear lower fairing [B] outward to clear the projections [C].

Fairings

Rear Lower Fairing Installation

  • Insert the projection [A] into the damper [B] on the right lower fairing.
  • Insert the projection [C] into the damper [D].

Fairings

Windshield Removal

  • Remove:

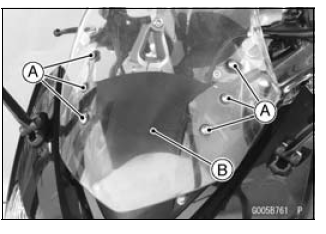

    Bolts [A] with Washers
    Windshield [B]

Fairings

Windshield Installation

  • Installation is the reverse of removal
