Kawasaki Z1000SX - Service manual > Frame

Frame / Frame

Frame Inspection

  • Visually inspect the frame for cracks, dents, bending, or warp.
    • If there is any damage to the frame, replace it.

WARNING A repaired frame may fail in use, possibly causing an accident resulting in injury or death. If the frame is bent, dented, cracked, or warped, replace it.

Rear Frame Removal

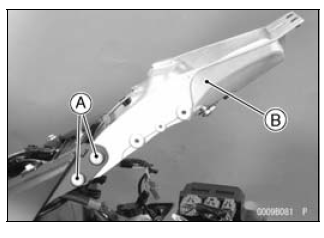

  • Remove:
    Rear Fender (see Rear Fender Removal)
    Rear Frame Bolts [A] (Both Sides)
    Rear Frame [B]

Frame

Rear Frame Installation

  • Apply a non-parmanent locking agent to the thread of the rear frame bolts.
  • Tighten:
    Torque - Rear Frame Bolts: 25 N*m (2.5 kgf*m, 18 ft*lb)

Rear Frame Bracket Removal

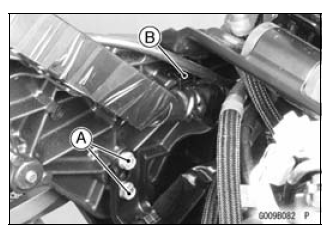

  • Remove:
    Side Cover (see Side Cover Removal)
    Battery Case (see Battery Case Removal)
    Rear Frame (see Rear Frame Removal)
    Bolts [A]
    Clamp [B] (Left Side Only)

Frame

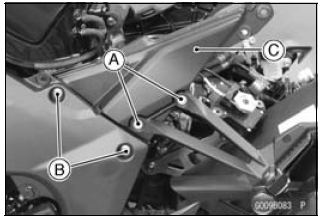

  • Remove:
    Rear Footpeg Bracket Bolts [A] (Both Sides)
    Rear Frame Bracket Bolts [B] (Both Sides)
    Rear Frame Bracket [C]

Frame

Rear Frame Bracket Installation

  • Tighten:
    Torque -
     Rear Frame Bracket Bolts: 44 N*m (4.5 kgf*m, 32 ft*lb)
     Rear Footpeg Bracket Bolts: 25 N*m (2.5 kgf*m, 18 ft*lb)
