Kawasaki Z1000SX - Service manual > Guard

Frame / Guard

Mud Guard Removal

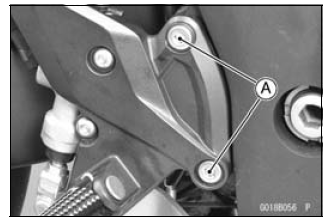

  • Remove:
    Rear Lower Fairing (see Rear Lower Fairing Removal)
    Right Front Footpeg Bracket Bolts [A]

Guard

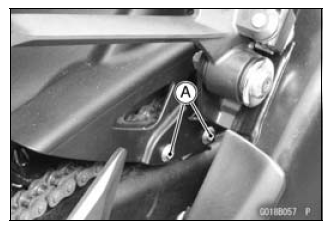

  • Remove:
    Bolts [A]

Guard

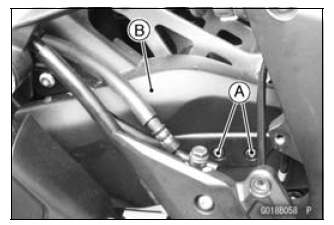

  • Remove:
    Quick Rivets [A]
    Mud Guard [B]

Guard

Mud Guard Installation

  • Installation is the reverse of removal, note the following.

    Torque - Front Footpeg Bracket Bolts: 25 N*m (2.5 kgf*m, 18 ft*lb)

    See also:

     Kawasaki Z1000SX - Service manual > Battery Case

    Battery Case Removal Remove: Battery (see Battery Removal in the Electrical System chapter) Exhaust Butterfly Valve Actuator [A] (see Exhaust Butterfly Valve Actuator Removal in the Fuel System (DFI) chapter) Seat Bracket Disconnect: Vehicle-down Sensor Connector [B] Starter Relay Connector [C] Remove: Fuse Box 2 [D] Fuse Box 1 [E] Bolts [F] Clamp [G] Pull the battery case rearward. Remove the clamp [A] (regulator/rectifier lead) from the battery case. Remove the battery case.

     Kawasaki Z1000SX - Service manual > Sidestand

    Sidestand Removal Raise the rear wheel off the ground with the stand. Remove: Sidestand Switch Bolt [A] and Nut [B] Sidestand Switch [C] Remove: Spring [A] Sidestand Nut [B] Sidestand Bolt [C] Sidestand [D]
