Electrical System / Trafficators Assembly

Direction Trafficator Bulb - Front

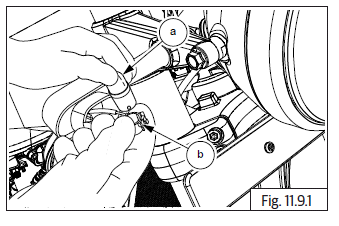

  • Install bulb (a) into holder(b).

Trafficators Assembly

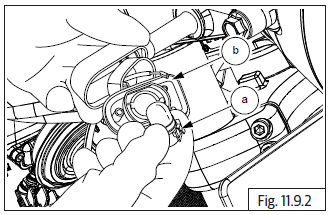

  • Install holder (a) along with bulb into lens (b).

Trafficators Assembly

  • Locate holder assembly (a) into lens assembly (b).

Trafficators Assembly

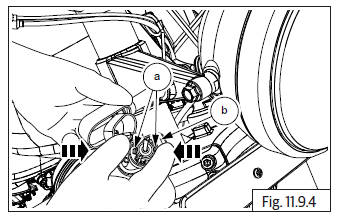

  • Ensure lock both sides (b) into holder assembly (b).

Trafficators Assembly

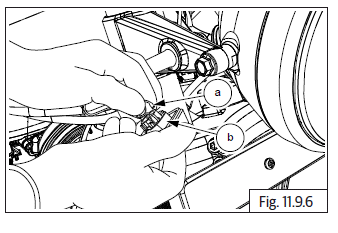

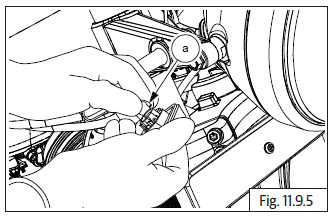

  • Connect positive (+) connection (a) into trafficator holder pin.

Trafficators Assembly

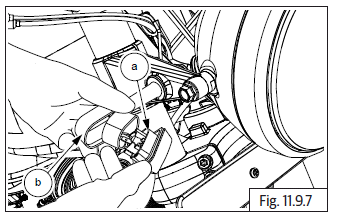

  • Connect ground connection (a) into holder assembly pin (b).

Trafficators Assembly

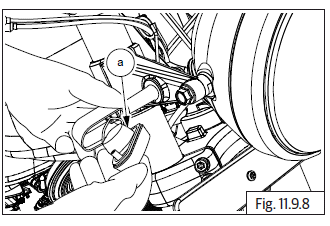

  • Install grommet (a) into lens assembly (b).

Trafficators Assembly

  • Install lens (a) along with bulb assembly.

Trafficators Assembly

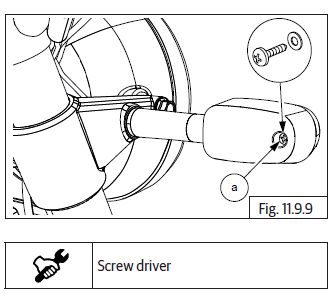

  • Locate and tighten screw along with washer (a) into front trafficator lens RH.

Trafficators Assembly

NOTE

  • After assembling headlamp assembly, check light operation.

Direction Trafficators - Rear

  • Locate trafficator into tail lamp housing.

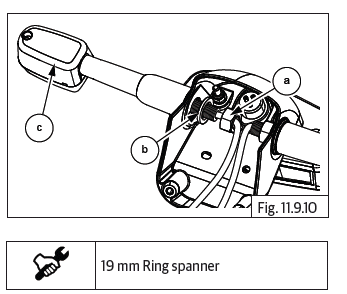

  • Locate and insert hex nut (M12) (a) along with washer (b).to install rear trafficator (c).

Trafficators Assembly

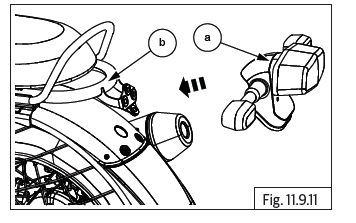

  • Support and install tail lamp housing (a) into the frame (b).

Trafficators Assembly
