Royal Enfield Interceptor 650 - Service manual > Battery Assembly

Electrical System / Battery Assembly

RR Unit

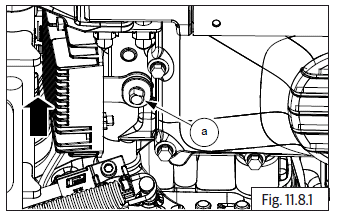

  • Locate RR unit (a) into engine guide rear along with bracket and gently slide up to fix RR unit.

Battery Assembly

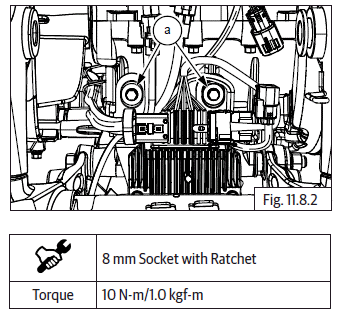

  • Insert and tighten 2 Nos. Hex flanged bolts (M6) (a) along with washer to fix RR unit.

Battery Assembly

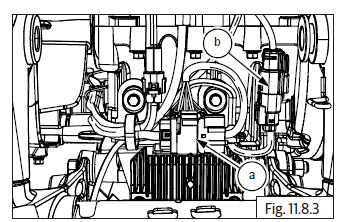

  • Connect RR unit connectors (a) and (b) into wiring harness and ensure they are locked properly.

Battery Assembly

Starter Solenoid

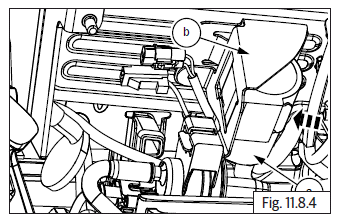

  • Gently slide and locate solenoid coil (a) into battery bracket (b).

Battery Assembly

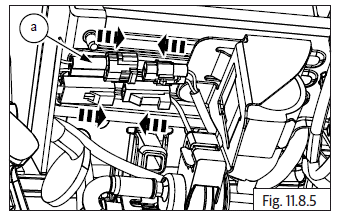

  • Connect starter solenoid connectors (a) into wiring harness.

Battery Assembly

Battery Tray

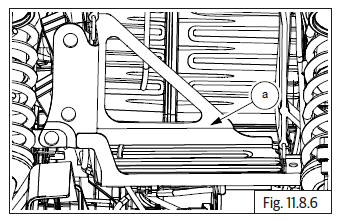

  • Locate battery tray (a) into frame and ensure wiring harness routing is accurately connected into battery bracket.

Battery Assembly

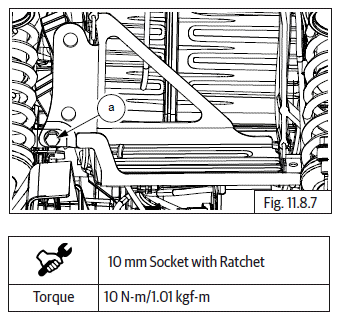

  • Locate and tighten Hex head collar bolt (M6) (a) into frame LH.

Battery Assembly

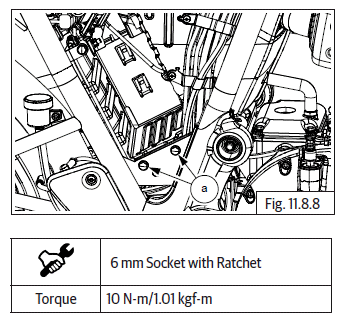

  • Locate and tighten 2 Nos. Hex head collar bolt (M6) (a) from frame RH.

Battery Assembly

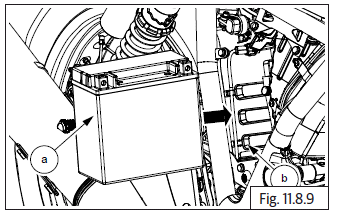

  • Install battery (a) into tray (b).

Battery Assembly

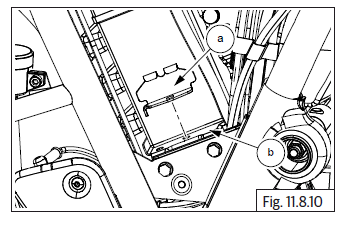

  • Place battery strap bracket (a) onto battery tray (b).

Battery Assembly

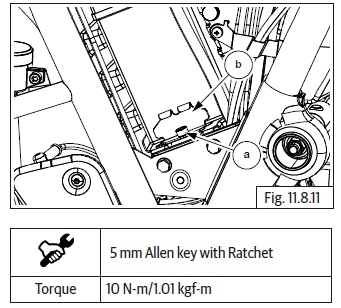

  • Locate and tighten flanged head screw (M6) (a) onto battery strap bracket (b).

Battery Assembly

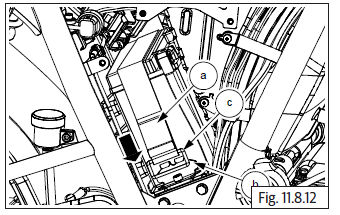

  • Pull battery strap (belt) (a) downwards to fix strap lock (b) into battery strap bracket (c).

Battery Assembly

Battery Terminals

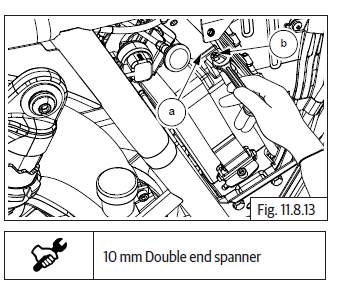

  • Connect battery positive (+) terminal (a) and tighten Hex head bolt (M6) (b).

Battery Assembly

Utility Box

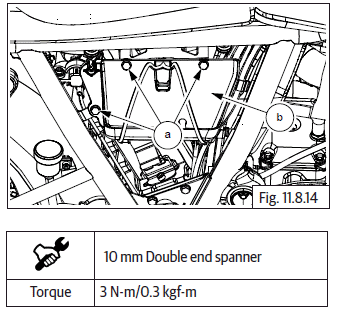

  • Locate and tighten 3 Nos. Hex head bolts (M6) (a) onto tool holder (b).

Battery Assembly

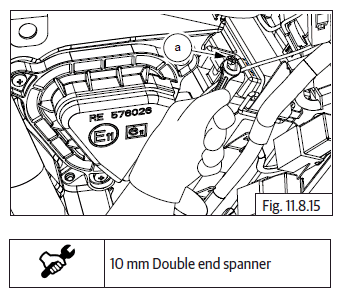

  • Connect battery negative (-) terminal (a) and tighten Hex head bolt (M6) (b).

Battery Assembly

  • Clean and apply recommended agents on battery terminals.
