Royal Enfield Interceptor 650 - Service manual > Brake Lamp Connectors Assembly

Electrical System / Brake Lamp Connectors Assembly

Brake Lamp Connector - Rear

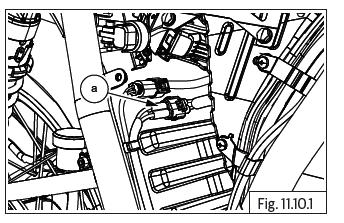

  • Connect rear brake lamp connector (a) and ensure it is locked properly.

Brake Lamp Connectors Assembly

NOTE

  • After assembling rear brake lamp switch, check brake light operation.

Brake Lamp Connector - Front

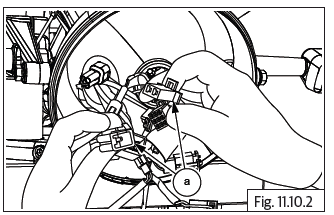

  • Connect front brake lamp connector (a).

Brake Lamp Connectors Assembly

  • After assembling front brake switch. Check front brake operation at Tail lamp

Tail Lamp Assembly

Tail Lamp

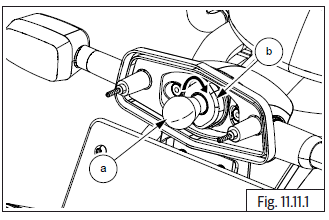

  • Gently push bulb (a) and turn clockwise to lock bulb into holder (b).

Tail Lamp Assembly

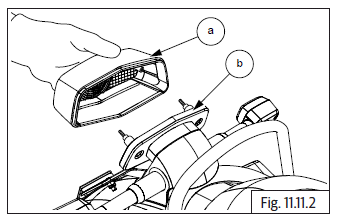

  • Gently locate lens (a) into tail lamp assembly (b).

Tail Lamp Assembly

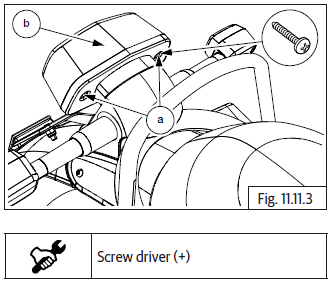

  • Locate and tighten 2 Nos. screws (a) into tail lamp lens (b).

Tail Lamp Assembly

NOTE

  • After assembling tail lamp assembly, check tail lamp operation & brake light operation.
