Kawasaki Z1000SX - Service manual > Final Drive

Final Drive

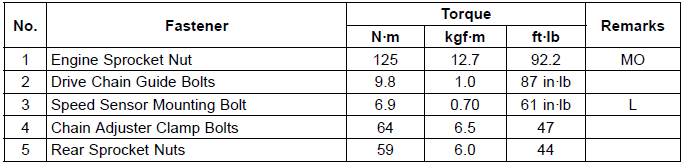

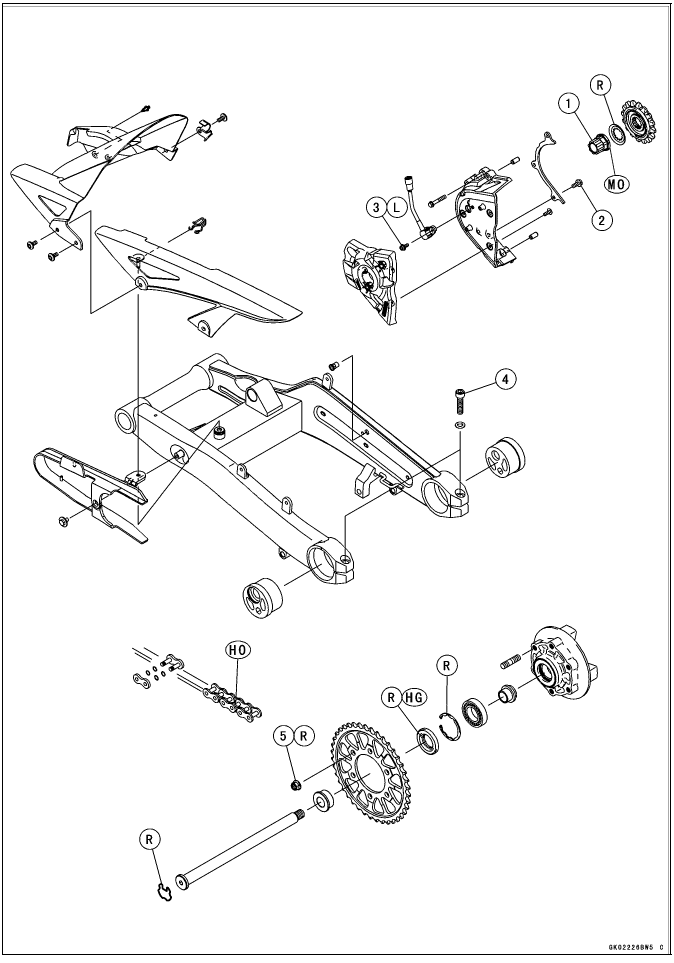

Exploded View

Exploded View

Exploded View

HG: Apply high-temperature grease.
HO: Apply heavy oil.
MO: Apply molybdenum disulfide oil.
(mixture of the engine oil and molybdenum disulfide grease in a weight ratio 10 : 1)
R: Replacement Parts

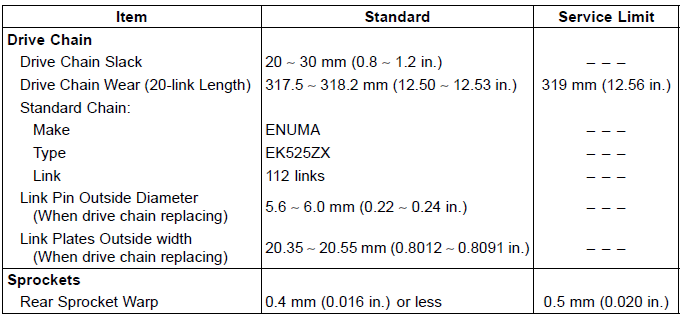

Specifications

Specifications

Special Tools

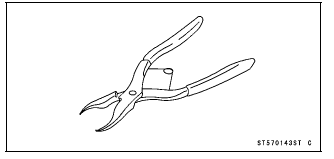

Inside Circlip Pliers: 57001-143

Special Tools

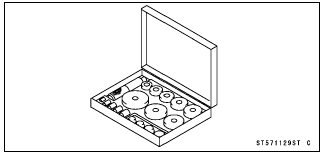

Bearing Driver Set: 57001-1129

Special Tools
