Royal Enfield Interceptor 650 - Service manual > Breather Hose Connections

Engine / Components Removal from Engine / Breather Hose Connections

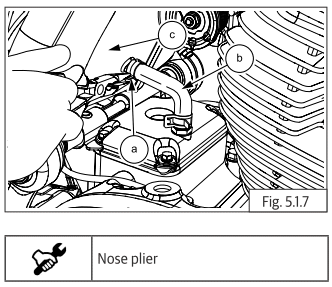

  • Release the clamp (a) to disconnect breather hose (b) from air filter box (c).

Components Removal from Engine

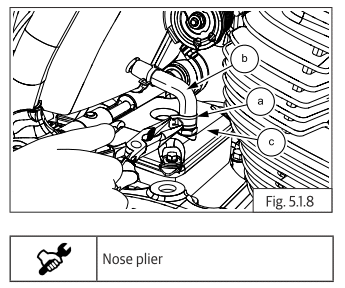

  • Release the clamp (a) to disconnect breather hose (b) from breather box (c).

Components Removal from Engine

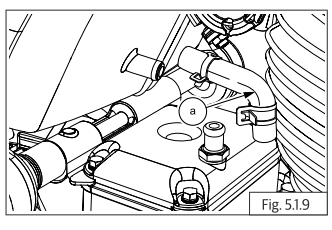

  • Remove breather hose (a).

Components Removal from Engine

Breather Box

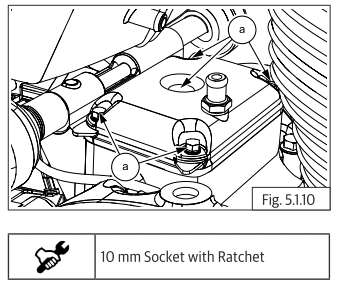

  • Loosen and remove the 5 Nos. Hex flange head bolts (M6) (a).

Components Removal from Engine

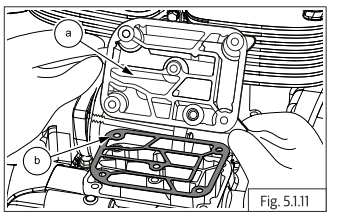

  • Gently remove breather box cover (a) along with gasket (b).

Components Removal from Engine

Gear Shift Linkage

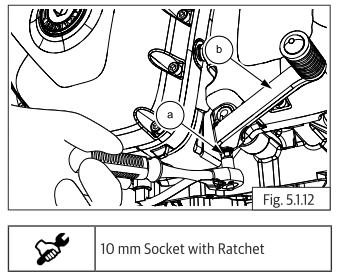

  • Loosen Hex flange bolt (M6) (a) to remove gear shift lever (b) from gear shaft.

Components Removal from Engine

Throttle Body Covers on LH and RH

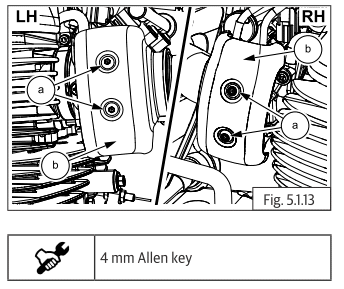

  • Loosen and remove 2 Nos. Hex socket button head screws (M5) (a) on the throttle body cover (b) RH.
  • Repeat the above process to remove cover LH.

Components Removal from Engine

Throttle Cable

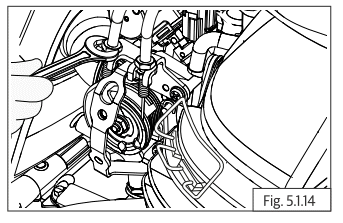

  • Disconnect throttle cables from throttle body.

Components Removal from Engine
