Kawasaki Z1000SX - Service manual > Transmission Shaft Disassembly

Crankshaft/Transmission / Transmission / Transmission Shaft Disassembly

  • Remove the transmission shafts (see Transmission Shaft Removal).
  • Remove the circlips, and disassemble the transmission shafts.

    Special Tool - Outside Circlip Pliers: 57001-144

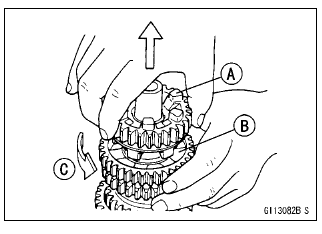

  • The 5th gear [A] on the output shaft has three steel balls assembled into it for the positive neutral finder mechanism.

    Remove the 5th gear.

    • Set the output shaft in a vertical position holding the 3rd gear [B].
    • Spin the 5th gear quickly [C] and pull it off upward.

Transmission

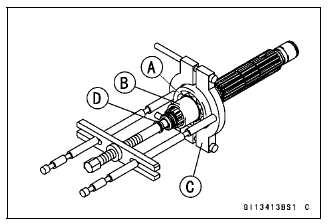

  • Remove the ball bearing [A] from each shafts.

    Special Tools -
     Bearing Puller [C]: 57001-135
     Bearing Puller Adapter [D]: 57001-317

  • Discard the bearing.
    • For output shaft, remove the collar [B] together with the ball bearing.

Transmission
