Kawasaki Z1000SX - Service manual > Stick Coils #1, #2, #3, #4 (Service Code 51, 52, 53, 54)

Stick Coil #1: Service Code 51
Stick Coil #2: Service Code 52
Stick Coil #3: Service Code 53
Stick Coil #4: Service Code 54

Stick Coil Removal/Installation

• Refer to the Stick Coil Removal/Installation in the Electrical System chapter.

Stick Coil Primary Winding Resistance Inspection

• Refer to the Stick Coil Inspection in the Electrical System chapter.

  If the reading is within the standard, check the input voltage (see Stick Coil Input Voltage Inspection).

Stick Coil Input Voltage Inspection

NOTE

• Be sure the battery is fully charged.

• Turn the ignition switch OFF.
• Remove the ECU (see ECU Removal).
  • Do not disconnect the ECU connectors.
• Connect a digital meter [A] to the connector [B] with the needle adapter set.

Special Tool - Needle Adapter Set: 57001-1457

Stick Coil Input Voltage
 Connections to ECU Connector:

For Stick Coil #1
 Digital Meter (+) → BK lead (terminal 40)
 Digital Meter (-) → BK/Y lead (terminal 54) For Stick Coil #2
 Digital Meter (+) → R/W lead (terminal 47)
 Digital Meter (-) → BK/Y lead (terminal 54) For Stick Coil #3
 Digital Meter (+) → BK/W lead (terminal 39)
 Digital Meter (-) → BK/Y lead (terminal 54) For Stick Coil #4
 Digital Meter (+) → BK/O lead (terminal 38)
 Digital Meter (-) → BK/Y lead (terminal 54)

• Measure the input voltage to each primary winding of the stick coils with the engine stopped and with the connectors joined.
• Turn the engine stop switch to run position.
• Turn the ignition switch ON.

Input Voltage
 Standard: Battery Voltage

• Turn the ignition switch OFF.

  If the input voltage is out of the standard, check the wiring for continuity (see wiring diagram in this section).

  If the wiring is good, check the ECU for its ground and power supply (see ECU Power Supply Inspection).

  If the ground and power supply are good, replace the ECU (see ECU Removal/Installation).

  If the input voltage is within the standard, check the ECU for its ground and power supply (see ECU Power Supply Inspection).

  If the ground and power supply are good, replace the ECU (see ECU Removal/Installation).

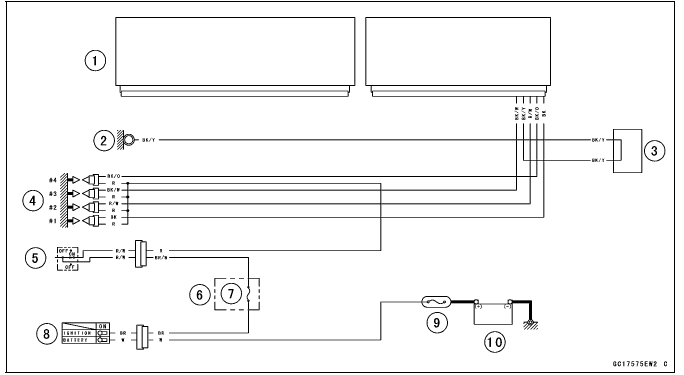

Stick Coil Circuit

1. ECU
2. Frame Ground
3. Water-proof Joint C
4. Stick Coil #1, #2, #3, #4
5. Engine Stop Switch
6. Fuse Box 2
7. Ignition Fuse 15 A
8. Ignition Switch
9. Main Fuse 30 A
10. Battery 12 V 8 Ah

Radiator Fan Relay (Service Code 56)

Radiator Fan Relay Removal/Installation

• The radiator fan relay is built in the relay box [A].

• Refer to the Relay Box Removal in the Electrical System chapter.

Radiator Fan Relay Inspection

• Refer to the Relay Circuit Inspection in the Electrical System chapter.

  If the radiator fan relay is normal, check the wiring for continuity (see wiring diagram in this section).

  If the wiring is good, check the ECU for its ground and power supply (see ECU Power Supply Inspection).

  If the ground and power supply are good, replace the ECU (see ECU Removal/Installation).

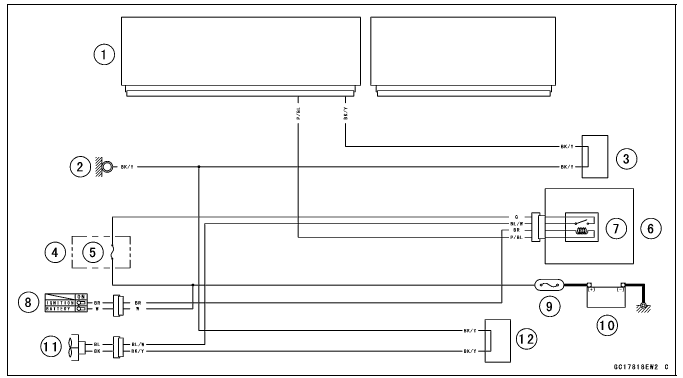

Radiator Fan Relay Circuit

1. ECU
2. Frame Ground
3. Water-proof Joint C
4. Fuse Box 2
5. Fan Fuse 15 A
6. Relay Box
7. Radiator Fan Relay
8. Ignition Switch
9. Main Fuse 30 A
10. Battery 12 V 8 Ah
11. Radiator Fan Motor
12. Water-proof Joint A
