Kawasaki Z1000SX - Service manual > Oil Cooler

Oil Cooler Removal

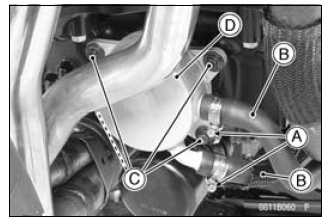

• Remove:
  Left Lower Fairing Assembly (see Lower Fairing Assembly Removal in the Frame chapter)
  Coolant (Drain, see Coolant Change in the Periodic Maintenance chapter)
  Engine Oil (Drain, see Engine Oil Change in the Periodic Maintenance chapter)
  Water Hose Clamp Screws (Loosen) [A]
  Water Hoses [B]
  Oil Cooler Bolts [C]
  Oil Cooler [D]

Oil Cooler Installation

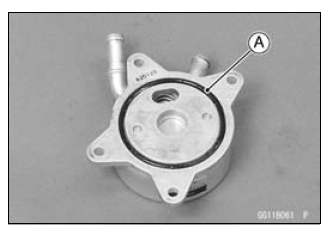

• Replace the O-ring [A] with a new one.
• Apply grease to the O-ring and install it.
• Install the oil cooler.
• Tighten:
  Torque - Oil Cooler Bolts: 12 N*m (1.2 kgf*m, 106 in*lb)

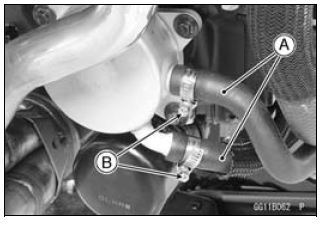

• Install the water hoses [A] and clamps as shown in the figure.
• Tighten:
  Torque - Radiator (Water) Hose Clamp Screws [B]: 3.0 N*m (0.31 kgf*m, 27 in*lb)
• Install the removed parts (see appropriate chapters).

Oil Pressure Measurement

Oil Pressure Measurement

• Remove the right lower fairing (see Lower Fairing Removal in the Frame chapter).

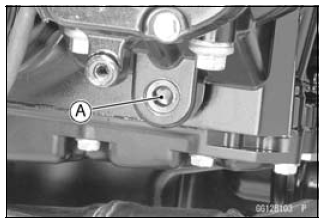

• Remove the oil passage plug [A].

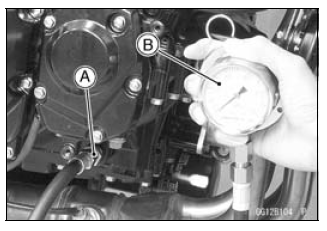

• Attach the adapter [A] and gauge [B] to the plug hole.

Special Tools -
 Oil Pressure Gauge, 10 kgf/cm²: 57001-164
 Oil Pressure Gauge Adapter, PT3/8: 57001 -1233

• Start the engine and warm up the engine.
• Run the engine at the specified speed, and read the oil pressure gauge.

  If the oil pressure is much lower than the standard, check the oil pump, relief valve, and/or crankshaft bearing insert wear immediately.

  If the reading is much higher than the standard, check the oil passages for clogging.

Oil Pressure
 Standard: 255 - 304 kPa (2.6 - 3.1 kgf/cm², 37 - 44 psi) at 4 000 r/min (rpm), oil temperature 50ºC (122ºF)

• Stop the engine.
• Remove the oil pressure gauge and adapter.

WARNING Take care against burns form hot engine oil that will drain through the oil passage when the gauge adapter is removed.

• Apply a non-permanent locking agent to the oil passage plug, and tighten it.

  Torque - Oil Passage Plug: 20 N*m (2.0 kgf*m, 15 ft*lb)
