Kawasaki Z1000SX - Service manual > Engine Lubrication System

Engine Lubrication System

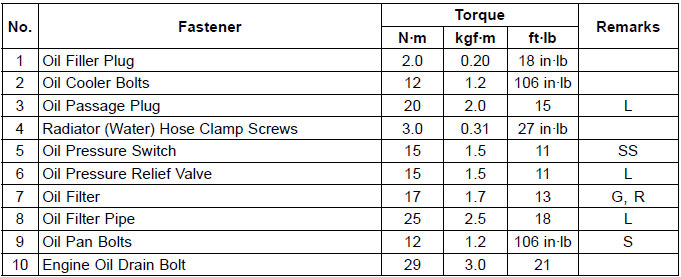

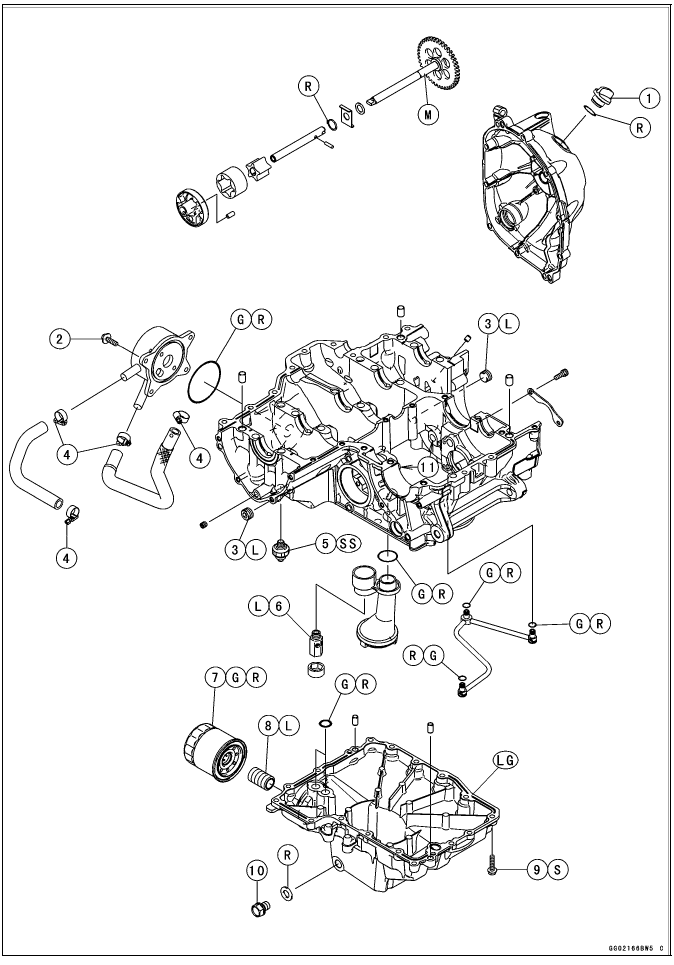

Exploded View

Exploded View

Exploded View

11. Apply molybdenum disulfide oil solution to the hole of the oil pump drive gear shaft.
G: Apply grease.
L: Apply a non-permanent locking agent.
LG: Apply liquid gasket.
M: Apply molybdenum disulfide grease.
R: Replacement Parts
S: Follow the specified tightening sequence.
SS: Apply silicone sealant.

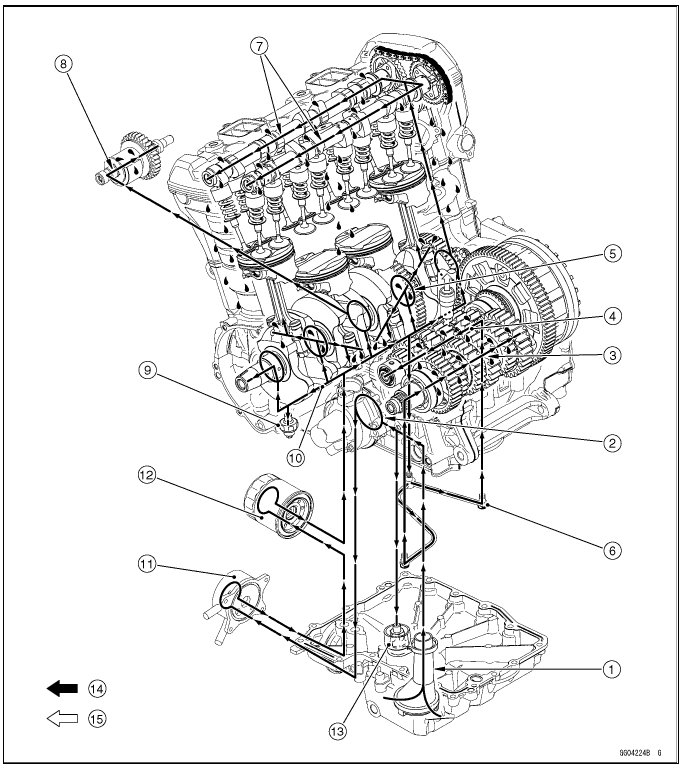

Engine Oil Flow Chart

Engine Oil Flow Chart

  1. Oil Screen
  2. Oil Pump
  3. Output Shaft Oil Passage
  4. Drive Shaft Oil Passage
  5. Crankshaft Oil Passage
  6. Oil Pipe
  7. Camshaft Oil Passage
  8. Balancer Oil Passage
  9. Oil Pressure Switch
  10. Main Oil Passage
  11. Oil Cooler
  12. Oil Filter
  13. Oil Pressure Relief Valve
  14. Oil
  15. Blowby Gas

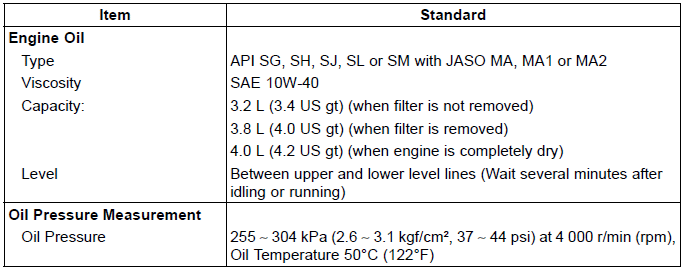

Specifications

Specifications

Special Tools and Sealants

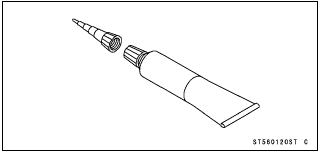

Liquid Gasket, TB1211: 56019-120

Special Tools and Sealants

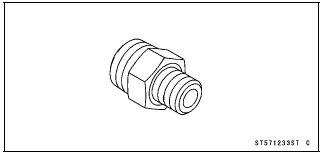

Oil Pressure Gauge Adapter, PT3/8: 57001-1233

Special Tools and Sealants

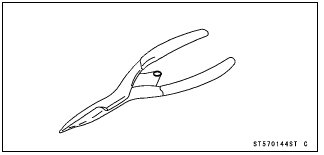

Outside Circlip Pliers: 57001-144

Special Tools and Sealants

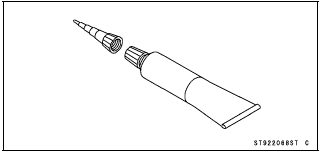

Liquid Gasket, TB1207B: 92104-2068

Special Tools and Sealants

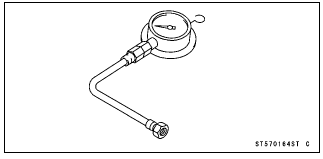

Oil Pressure Gauge, 10 kgf/cm²: 57001-164

Special Tools and Sealants
