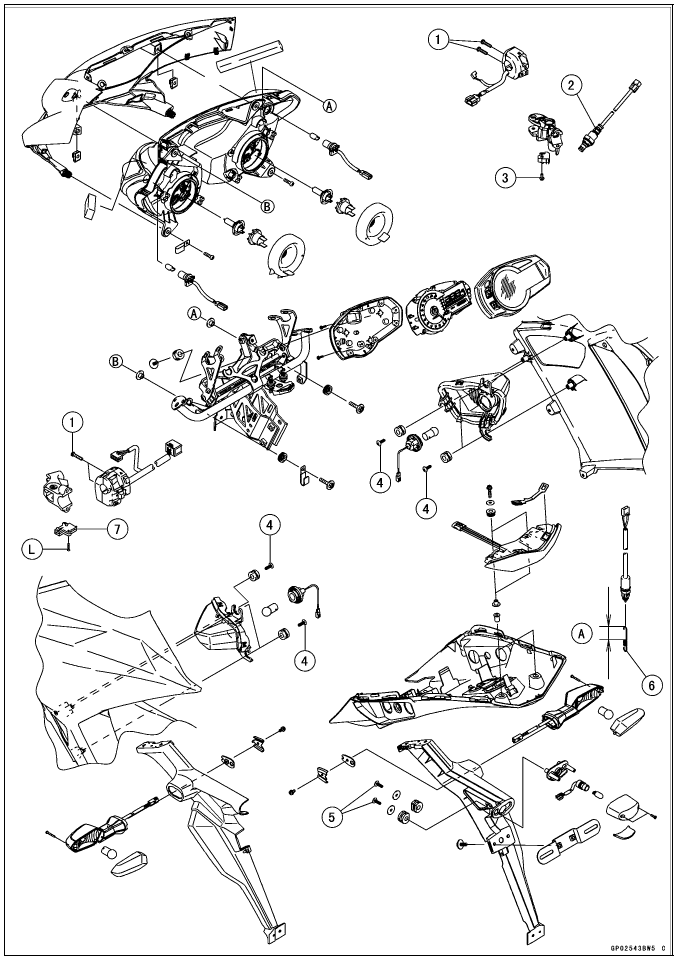

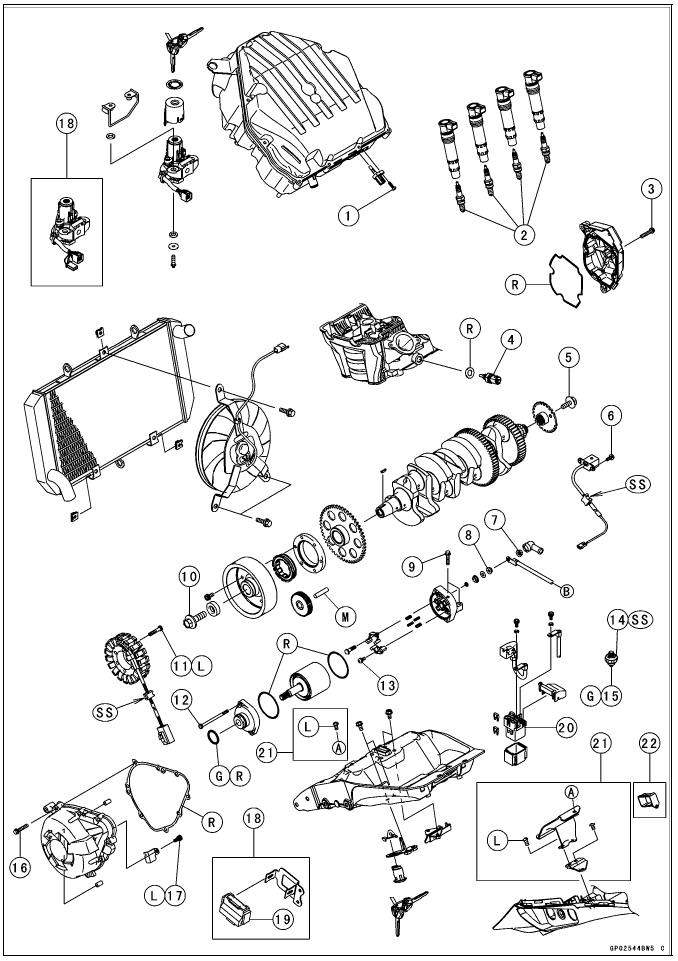

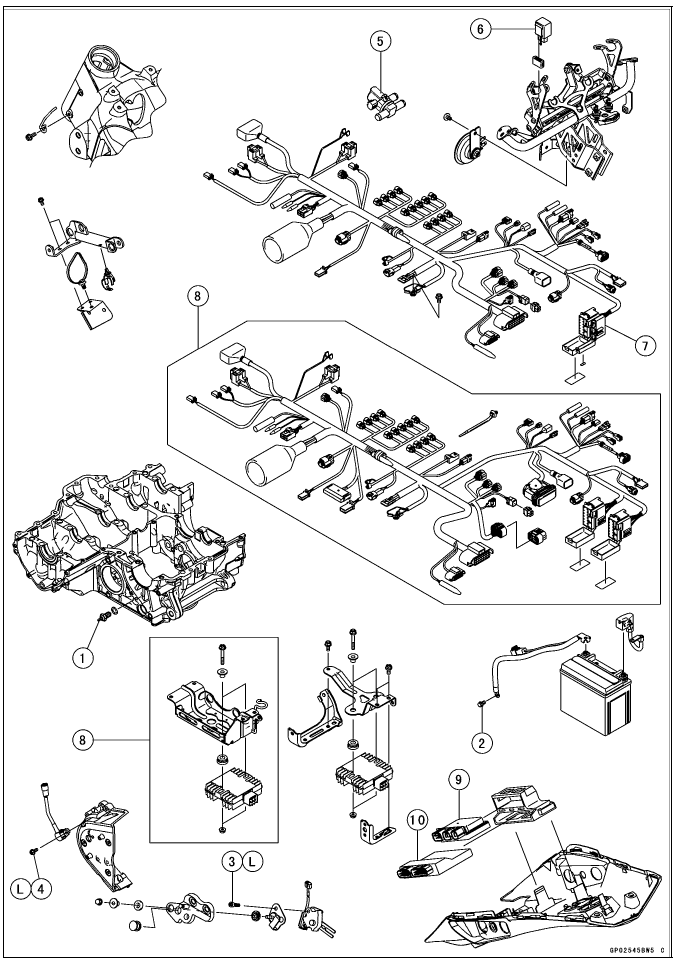

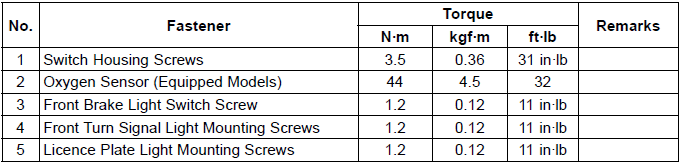

Exploded View
6. Install the rear brake light switch spring so that the longer side [A]
faces upward.
7. Starter Lockout Switch
L: Apply a non-permanent locking agent.
18. Immobilizer Model
19. Immobilizer Amplifier
20. Starter Relay
21. WVTA (78.2H) and GB WVTA (FULL H) Models
22. ZX1000GB GB WVTA (FULL H) Early Model
G: Apply grease.
L: Apply a non-permanent locking agent.
M: Apply molybdenum disulfide grease.
R: Replacement Parts
SS: Apply silicone sealant.
5. Air Switching Valve
6. Turn Signal Relay
7. Fuel Box
8. ABS Equipped Models
9. Relay Box
10. ECU
L: Apply a non-permanent locking agent.

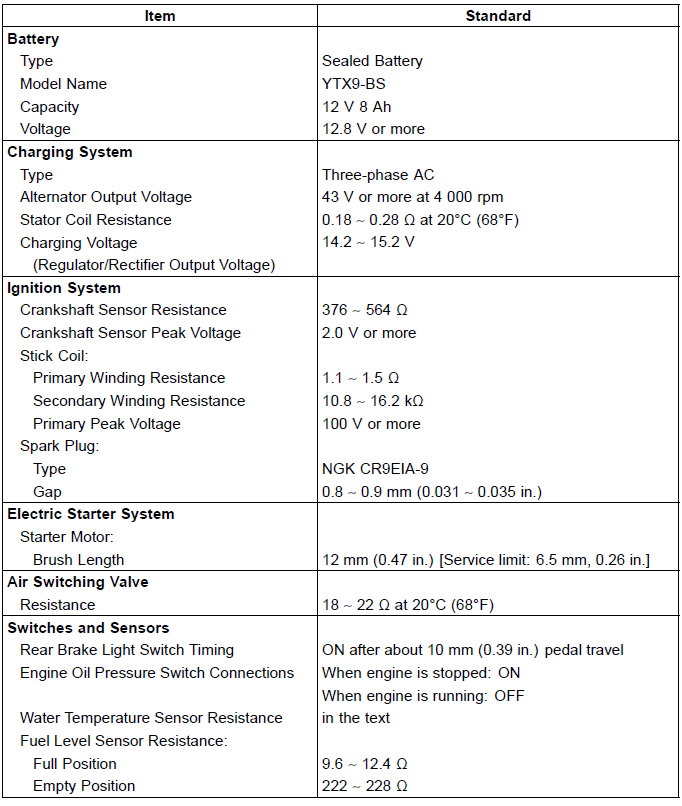

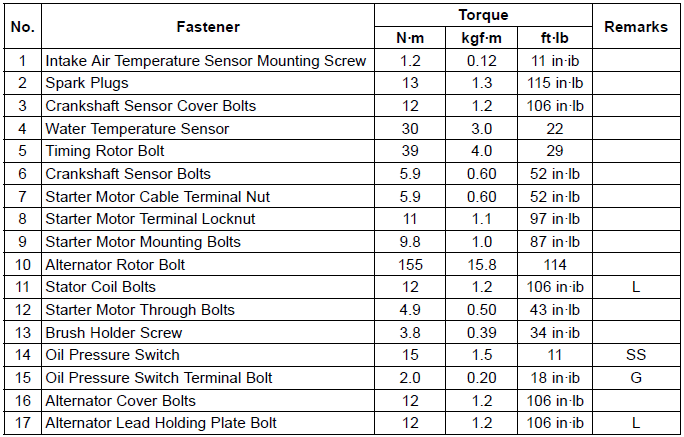

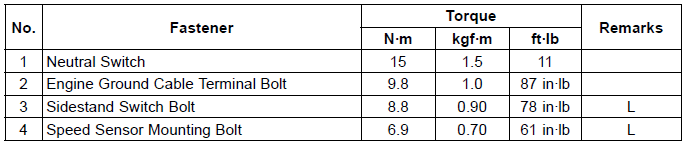

Specifications
Special Tools and Sealant

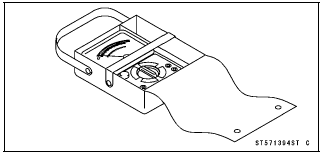

Hand Tester: 57001-1394

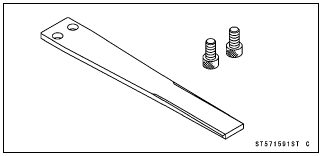

Grip: 57001-1591
Peak Voltage Adapter: 57001-1415
Flywheel & Pulley Holder: 57001-1605

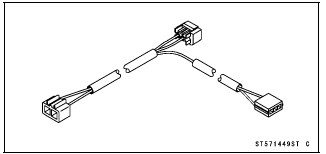

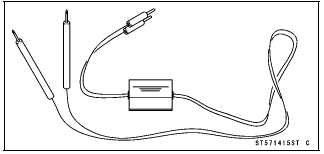

Lead Wire - Peak Voltage Adapter: 57001-1449

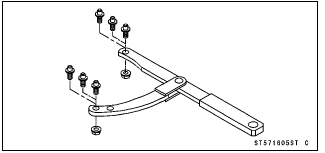

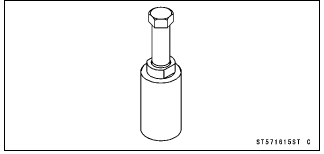

Flywheel Puller Assembly, M38 × 1.5/M35 × 1.5: 57001-1615

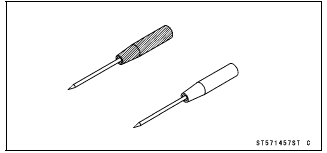

Needle Adapter Set: 57001-1457
Stopper: 57001-1679

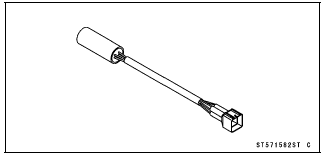

Key Registration Unit: 57001-1582

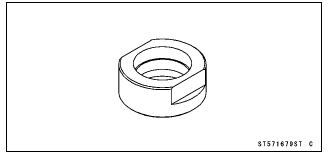

Rotor Holder: 57001-1690

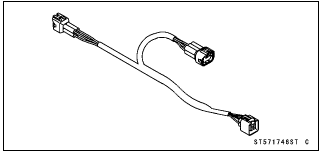

Key Registration Adapter: 57001-1746

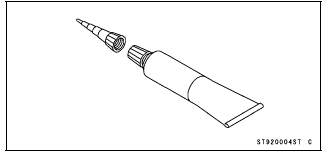

Liquid Gasket, TB1211F: 92104-0004

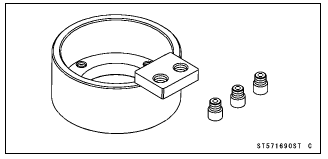

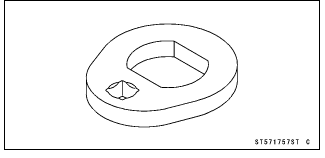

Rotor Holder: 57001-1757
