Royal Enfield Interceptor 650 - Service manual > Engine Cylinder Head Steady Bracket

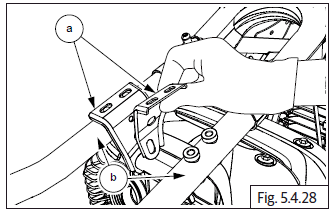

• Locate the steady brackets (a) into LH and RH frames (b).

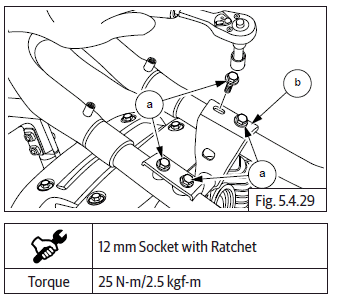

• Locate and tighten 4 Nos. Hex bolts (M8) (a) on brackets (b) holding main frame to torque.

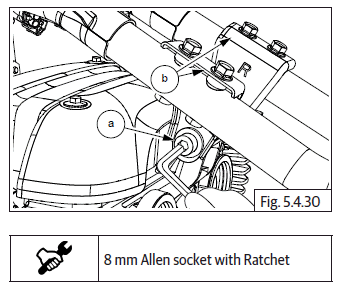

• Insert Hex socket bolt (M10) (a) from LH steady bracket into RH steady bracket (b).
• Hold LH Hex socket bolt with suitable tool.

• Assemble washer and Hex nut (M10) (a) from RH and tighten nut to specified torque.

Main Frame to Engine Mounting Bolts

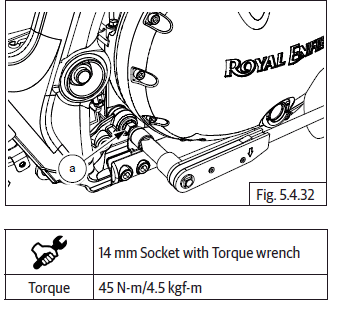

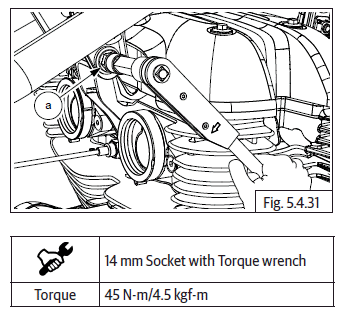

• Tighten lower rear crankcase mounting nut (a) to specified torque.

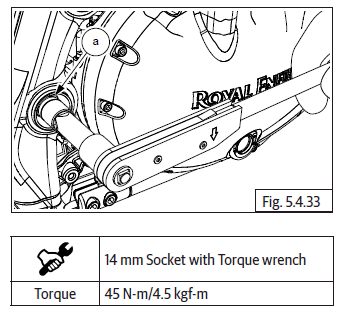

• Tighten upper rear crankcase mounting nut (a) to specified torque.

• Remove support from bottom of engine after ensuring all mounting fasteners to cradle frame and mainframe are correctly torqued to specifications.

Gear Position Indicator Sensor

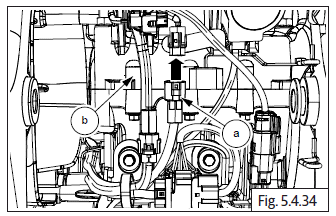

• Connect gear position sensor (a) to connector (b) located behind engine.

Rear Chain to FD sprocket

• Loosen rear wheel mountings and chain adjusters and push rear wheel into swing arm to increase chain slack.
• Position rear chain over FD sprocket teeth properly.

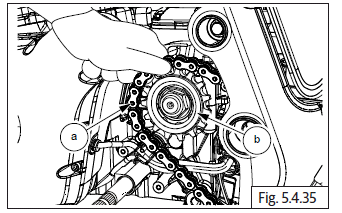

• Assemble chain (a) on FD sprocket (b).

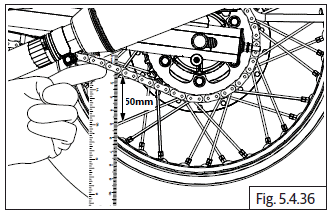

• Adjust rear chain tension to specification: 30 mm to 40 mm

• Tighten rear wheel axle nut.

FD Sprocket Cover

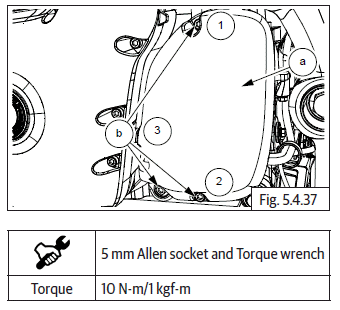

• Assemble FD sprocket cover (a) on crankcase LH.
• Locate 3 Nos. Hex socket head bolts (M6) (b) on FD sprocket cover and tighten in a crisscross pattern to specified torque.

Gear Shift Linkage

• Assemble gear shift lever (a) on shaft at an angle such that it is parallel to foot rest.

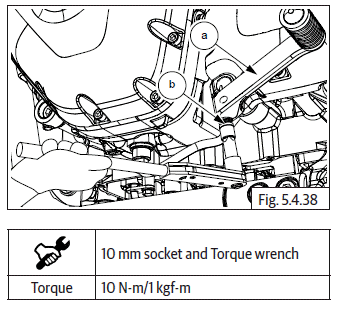

• Locate Hex bolt (M6) (b) on gear lever and tighten to specified torque.
