Kawasaki Z1000SX - Service manual > Crankshaft Runout Inspection

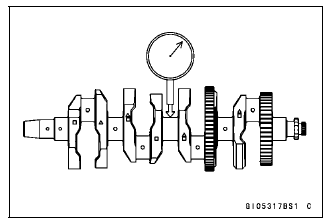

• Measure the crankshaft runout.

  If the measurement exceeds the service limit, replace the crankshaft.

Crankshaft Runout
 Standard: TIR 0.02 mm (0.0008 in.) or less
 Service Limit: TIR 0.05 mm (0.0020 in.)

Crankshaft Main Bearing Insert/Journal Wear Inspection

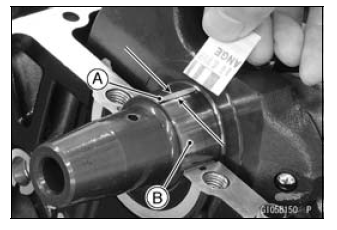

• Using a plastigage (press gauge) [A], measure the bearing insert/journal [B] clearance.

NOTE

• Tighten the crankcase bolts to the specified torque (see Crankcase Assembly).
• Do not turn the crankshaft during clearance measurement.
• Journal clearance less than 0.025mm(0.00098 in.) can not be measured by plastigage, however, using genuine parts maintains the minimum standard clearance.

Crankshaft Main Bearing Insert/Journal Clearance
 Standard: 0.010 - 0.034 mm (0.0004 - 0.0013 in.)
 Service Limit: 0.06 mm (0.0024 in.)

If the clearance is within the standard, no bearing replacement is required.

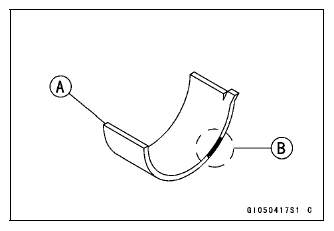

If the clearance is between 0.035 mm (0.0014 in.) and the service limit (0.06 mm, 0.0024 in.), replace the bearing inserts [A] with inserts painted blue [B]. Check insert/journal clearance with the plastigage. The clearance may exceed the standard slightly, but it must not be less than the minimum in order to avoid bearing seizure.

If the clearance exceeds the service limit, measure the diameter of the crankshaft main journal.

Crankshaft Main Journal Diameter
 Standard: 34.984 - 35.000 mm (1.3773 - 1.3780 in.)
 Service Limit: 34.96 mm (1.3764 in.)

If any journal has worn past the service limit, replace the crankshaft with a new one.

If the measured journal diameters are not less than the service limit, but do not coincide with the original diameter markings on the crankshaft, make new marks on it.

Crankshaft Main Journal Diameter Marks
 None  34.984 - 34.992 mm (1.3773 - 1.3776 in.)
 1  34.993 - 35.000 mm (1.3777 - 1.3780 in.)

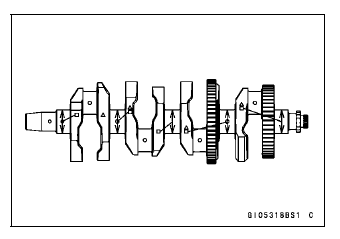

□: Crankshaft Main Journal Diameter Marks, "1" or no mark.

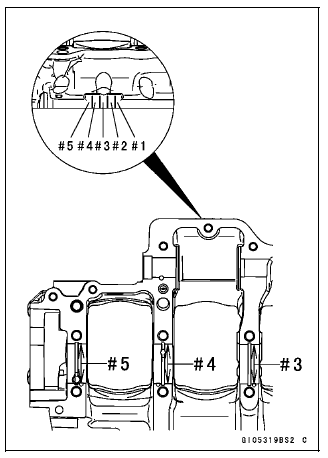

• Measure the main bearing inside diameter, and mark the upper crankcase half in accordance with the inside diameter.

  Crankcase Main Bearing Inside Diameter Marks: "○" or no mark.

• Tighten the crankcase bolts to the specified torque (see Crankcase Assembly).

NOTE

• The mark already on the upper crankcase half should almost coincide with the measurement.

Crankcase Main Bearing Inside Diameter Marks
 ○ 38.000 - 38.008 mm (1.4961 - 1.4963 in.)
 None 38.009 - 38.016 mm (1.4964 - 1.4967 in.)

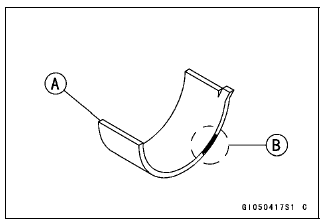

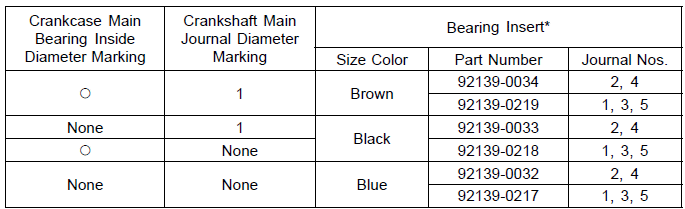

• Select the proper bearing insert [A] in accordance with the combination of the crankcase and crankshaft coding.

  Size Color [B]

* The bearing inserts for Nos. 2 and 4 journals have an oil groove, respectively.

• Install the new inserts in the crankcase halves and check insert/journal clearance with the plastigage.
