HEADLAMP BULB REPLACEMENT

• Loosen the rim holding screw on top and take out the head lamp dome.
• Disconnect electrical connections.
• Thumb push and remove the bulb holding clamp gently.
• Remove the bulb using a clean and soft cloth.

• Position the new bulb inside the reflector such that the three projections on the bulb align with the slot on the reflector.
• Refit the bulb holding clamp.
• Connect the electrical connections.
• Position head lamp dome onto the head lamp shell and tighten the mounting screw on top.

NOTE

Never touch the bulb with your fingers. Finger prints will etch the glass and decrease bulb life apart from causing burns to your fingers.

Always hold the bulb with gloves and clean dry cloth during handling.

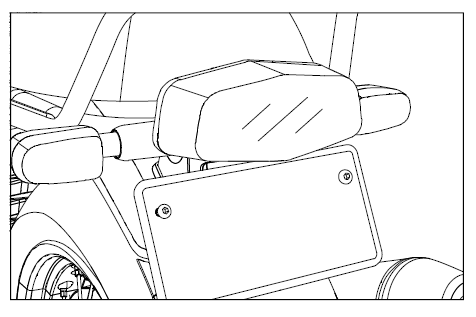

TAIL LAMP BULB

• Unlock the side panel RH.
• Remove the seat assembly by pulling seat lock cable.
• Remove the tail light cover by unscrewing its mounting screw.
• Hold the bulb, press inside and rotate anticlockwise to remove the tail light bulb from its holder using a clean cloth.
• Replace the bulb 12V 21 / 5W using a soft clean cloth.
• Re-assemble the tail light in the reverse order of dismantling process.

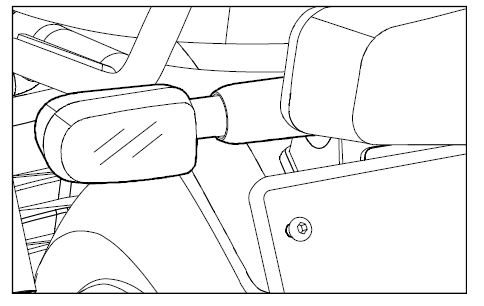

TRAFFICATOR BULB REPLACEMENT

• Remove the screw from the trafficator housing.
• Open the indicator housing.
• Remove the bulb holder with help of a screw driver.
• Remove the bulb and replace the same using a soft and clean cloth.
• Refit the holder to its proper position.
• Fix the rubber gasket cover.
• Assemble the indicator housing cover.

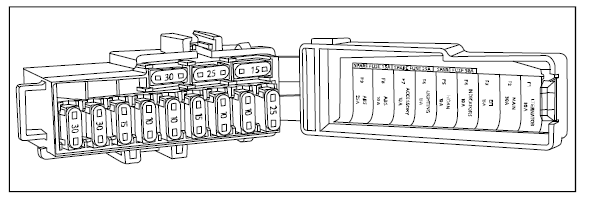

FUSE AND FUSE CARRIER

• The fuse carrier is located under the seat.
• Unlock side panel RH.
• Release seat lock by pulling knob and remove the seat.

WARNING

Electronic Control Unit (ECU ) may fail due to loose electrical connections, loose battery terminals , etc. Hence, it is very important to keep all the electrical connections are intact.

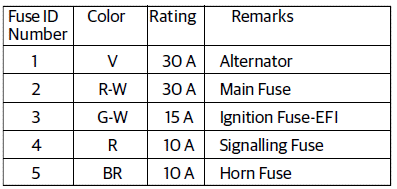

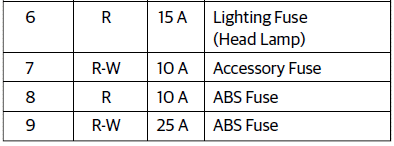

MINI BLADE FUSE USAGE LIST

WARNING

Please get the electrical system of your motorcycle checked thoroughly and get the faults corrected immediately after experiencing any fuse failure. Failure to do so may result in repeated fuse failure.

Usage of fuses other than specified rating will damage the complete electrical system.

Air filter

CLEAN AND REFIX : EVERY 5000 kms

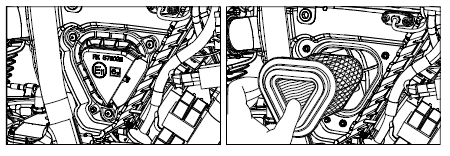

• Remove the screw from the side panel bottom side and remove side panel.
• Remove the air filter cover screws and then take out air filter box cover.
• Pull out filter element and check for dirt. Clean filter element carefully.

NOTE

Usage of high pressure compressed air is not recommended to clean air filter element.

Fitment of air filter element is in the reverse order of removal process.
