Royal Enfield Interceptor 650 - Service manual > Trafficators Dismantling

Electrical System / Trafficators Dismantling

Direction Trafficators - Rear

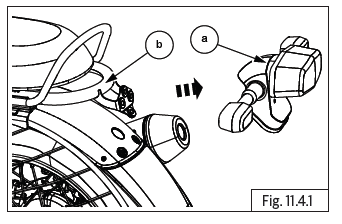

  • Remove rear number plate bracket.
  • Support and remove tail lamp housing (a) from the frame (b).

Trafficators Dismantling

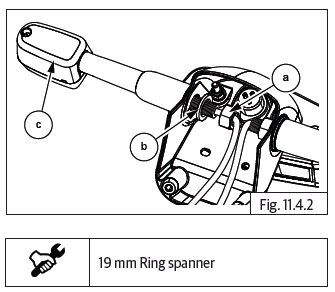

  • Loosen and remove hex nut (M12) (a) along with washer (b) to remove rear trafficator (c).

Trafficators Dismantling

Trafficator bulb - Front

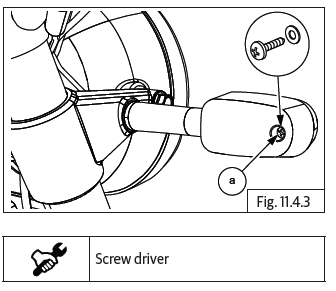

  • Loosen and remove screw along with washer (a) from front trafficator lens RH.

Trafficators Dismantling

  • Remove lens (a) along with bulb assembly.

Trafficators Dismantling

  • Remove grommet (a) from lens assembly (b).

Trafficators Dismantling

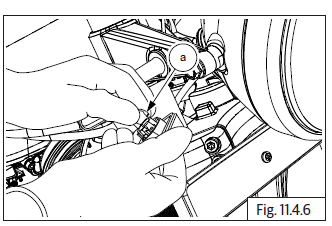

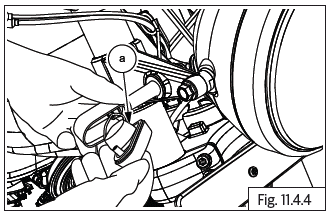

  • Disconnect ground connection (a) from holder assembly pin.

Trafficators Dismantling

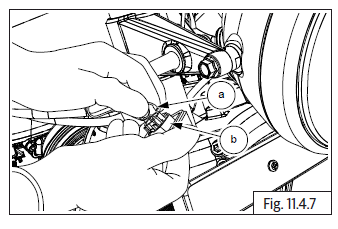

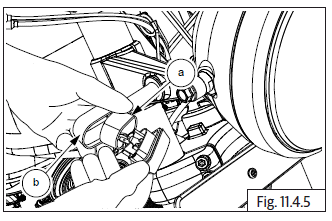

  • Disconnect positive (+) connection (a) from trafficator holder pin (b).

Trafficators Dismantling

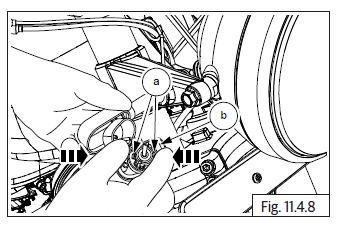

  • Press and release both locks (a) from holder assembly (b).

Trafficators Dismantling

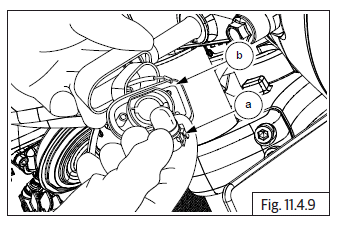

  • Remove holder (a) along with bulb from lens (b).

Trafficators Dismantling

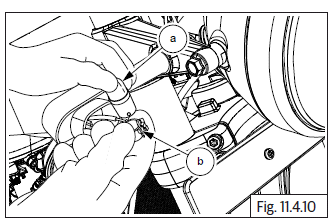

  • Remove bulb (a) from holder (b).

Trafficators Dismantling

  • To remove the trafficator assembly from headlamp assembly.
