Honda CBR650R - Owner's Manual > Tool Kit

The tool kit is stored under the seat.

You can perform some roadside repairs, minor adjustments and parts replacement with the tools contained in the kit.

ED, II ED, IV ED and V ED type

• Helmet set wire
• 10 × 14 mm Open end wrench
• Standard/Phillips screwdriver
• Extension bar
• Screwdriver handle
• 5 mm Hex wrench
• Pin spanner
• Fuse puller
• 8 × 12 mm Open end wrench
• 12 × 14 mm Open end wrench

II KO and U type

• Helmet set wire
• 10 × 14 mm Open end wrench
• Standard/Phillips screwdriver
• Extension bar
• Screwdriver handle
• 5 mm Hex wrench
• Pin spanner
• Fuse puller
• 8 × 12 mm Open end wrench
• 12 × 14 mm Open end wrench
• 22 mm Box end wrench
• 27 mm Box end wrench

Removing & Installing Body Components

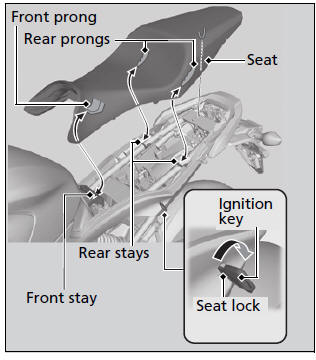

Seat

 Removal

1. Insert the ignition key into the seat lock, and turn and hold the key clockwise to unlock the seat.

2. Pull the rear of the seat back and up.

 Installation

1. Insert the front prong into the front stay on the frame.

2. Insert the rear prongs into the rear stays on the frame.

3. Push forward and down on the rear of the seat until it locks in place.

Make sure that the seat is locked securely in position to pull it up lightly.

The seat locks automatically when closed.

Take care not to lock your key in the compartment under the seat.

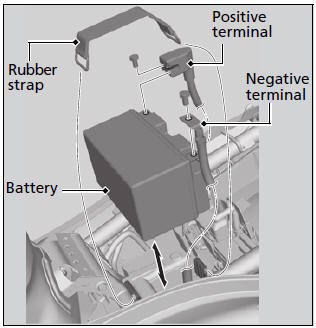

Battery

 Removal

Make sure the ignition switch is off.

1. Remove the seat.

2. Unhook the rubber strap from front side.

3. Disconnect the negative - terminal from the battery.

4. Disconnect the positive + terminal from the battery.

5. Remove the battery taking care not to drop the terminal nuts.

 Installation

Install the parts in the reverse order of removal. Always connect the positive + terminal first. Make sure that bolts and nuts are tight.

Readjust the clock after the battery is reconnected since the clock goes wrong once the battery disconnected.

For proper handling of the battery, see "Maintenance Fundamentals".

"Battery Goes Dead".
