Front Fork Assembly Removal from Motorcycle

Suspension

Front Fork LH and RH

Suspension

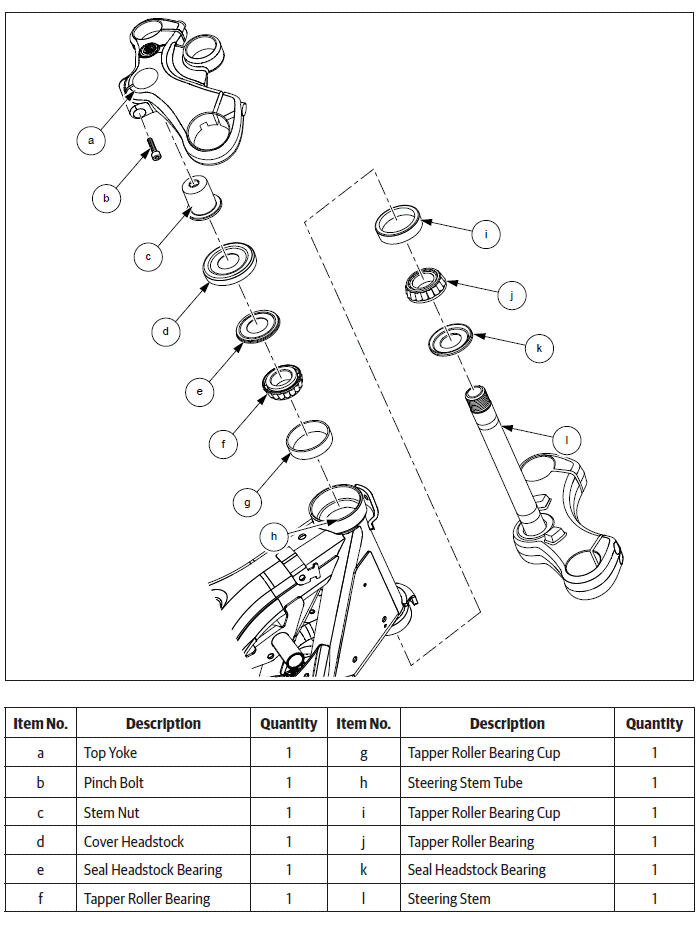

Steering Stem

Suspension

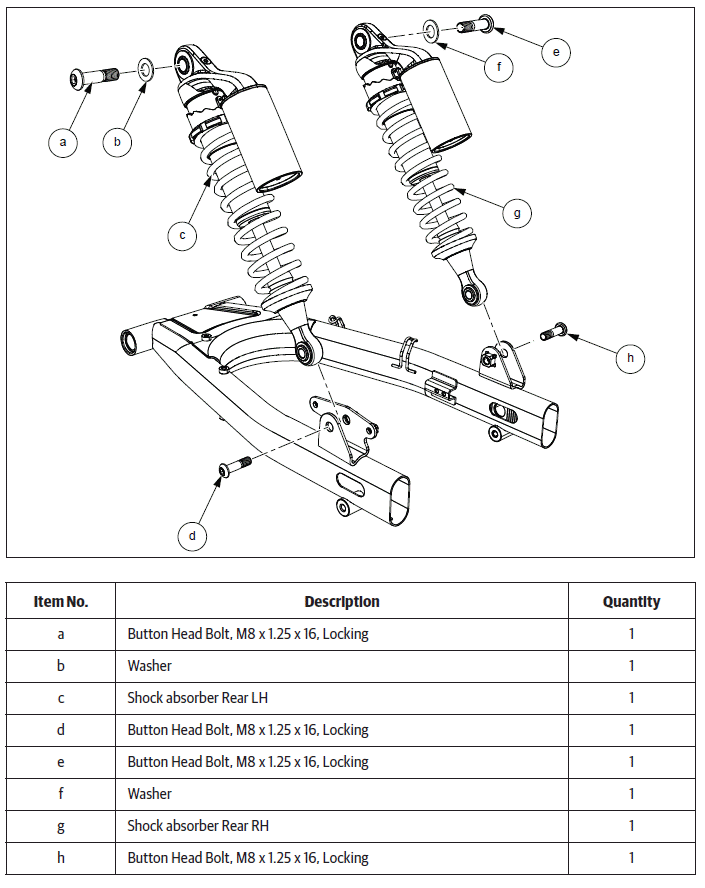

Shock absorber

Suspension

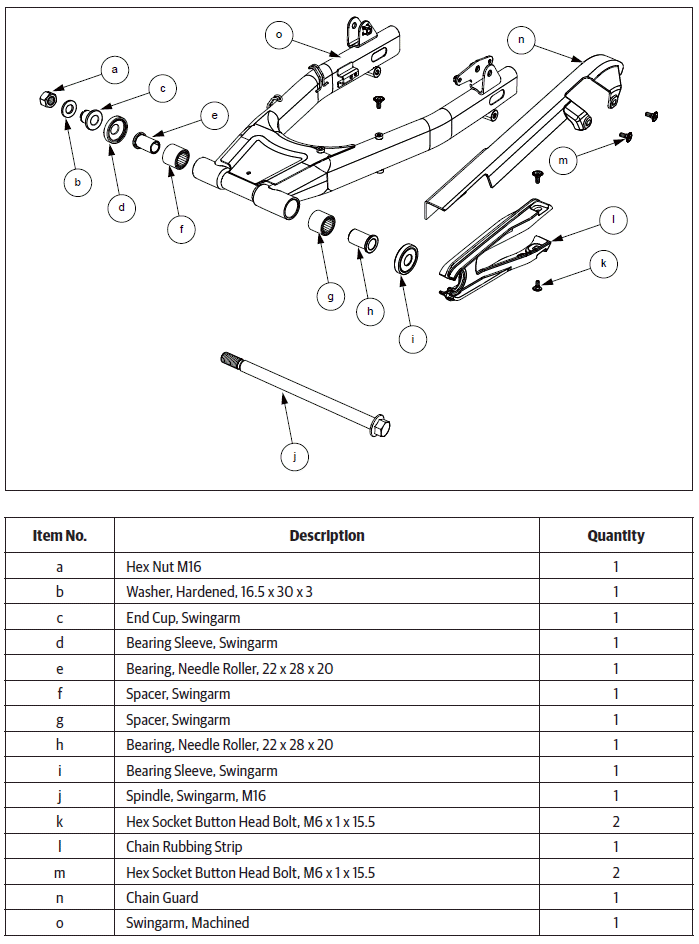

Swingarm

Suspension

Dismantling

Front Fork LH and RH Removal from Motorcycle

CAUTION Ensure the motorcycle is upright on a firm and flat surface.

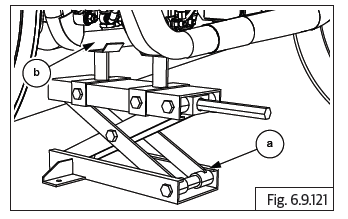

  • Locate a scissor jack (a) under cradle frame (b) and lift motorcycle such that the front wheel is off the ground by minimum 6 inches (or 15 cm).

Suspension

  • Ensure ignition and stop switch are in off position.
  • Remove the following parts:
    • Front wheel.
    • Release brake hose and wheel speed sensor wires from the clips.
    • Wheel caliper from fork end LH.

      Support caliper suitably.

    • Wheel speed sensor from the fork end LH. Support wheel speed sensor suitably.
    • Front mudguard.
    • Front number plate.
    • Headlamp assembly and housing.
    • Trafficators front.

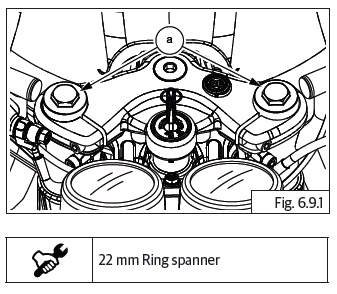

  • Loosen fork cap bolts (M14) (a) just sufficiently on both LH and RH fork assemblies.

Suspension

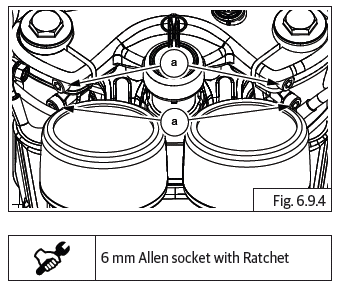

  • Loosen 4 Nos. Hex socket head bolts (M8) (a) sufficiently on LH and RH steering stem.

Suspension

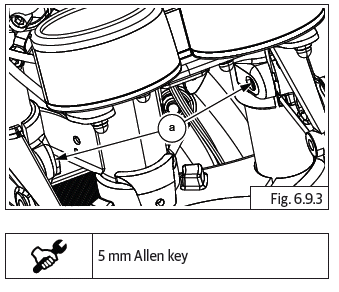

  • Loosen and remove 2 Nos. Hex socket head pinch bolts (M6) (a) on the headlamp bracket from LH and RH.

Suspension

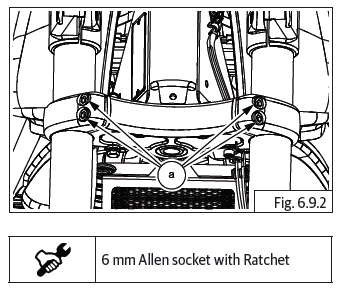

  • Loosen 4 Nos. Hex socket head bolts (M8) (a) sufficiently on LH and RH on yoke and clip-on.

Suspension

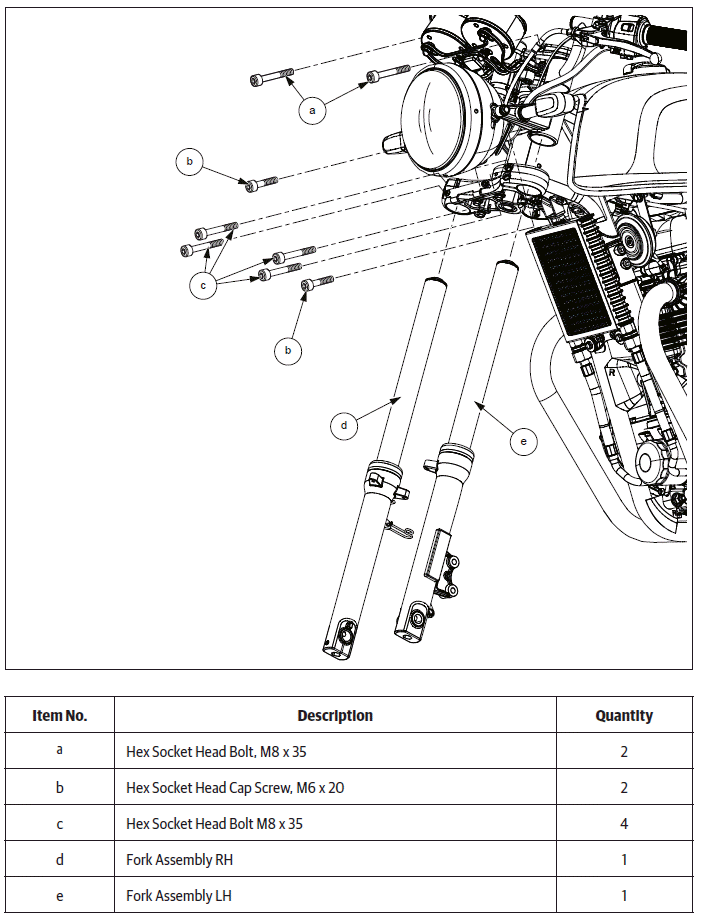

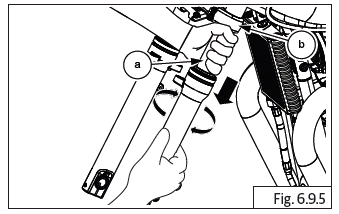

  • Gently rotate and pull out fork assembly LH (a) downwards to remove from top yoke and steering stem (b).

Suspension

CAUTION Support headlamp holder while removing fork assembly.

For continental GT models: Support clip on handlebar while removing fork assembly and tag clip on suitably to prevent damage to master cylinder and controls.

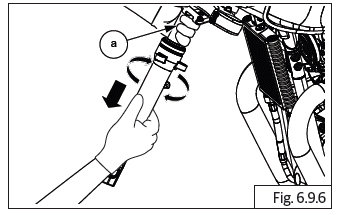

  • Repeat above steps to remove the fork assembly RH (a).

Suspension
