Kawasaki Z1000SX - Service manual > Steering

Steering

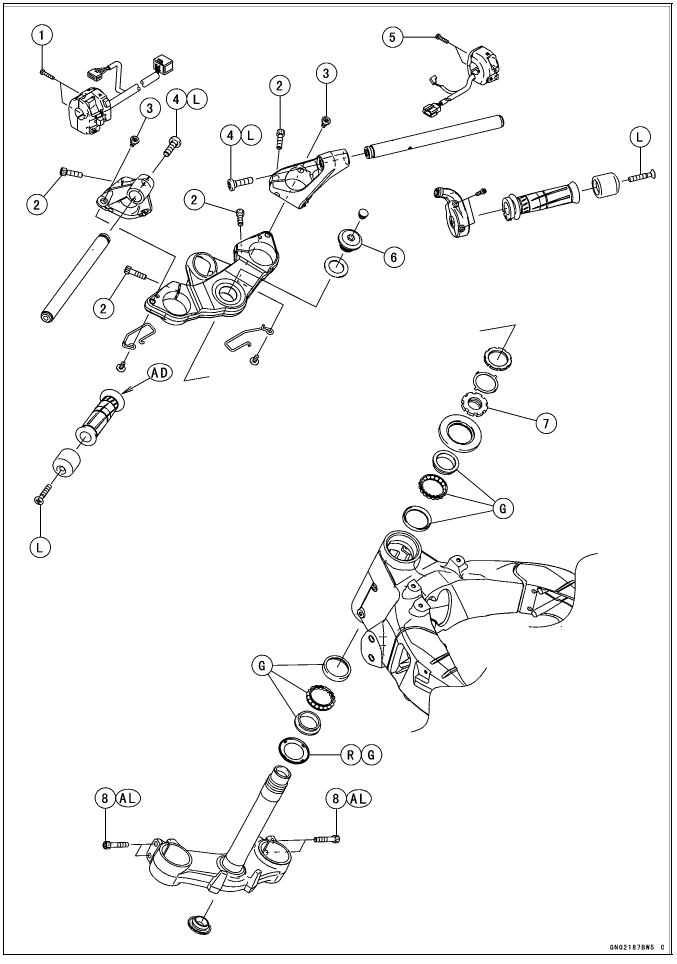

Exploded View

Steering

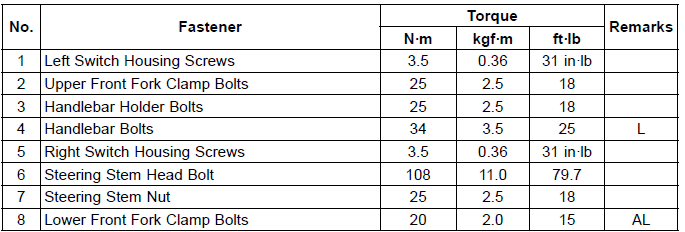

Steering

AD: Apply adhesive.
AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
G: Apply grease.
R: Replacement Parts
L: Apply a non-permanent locking agent.

Special Tools

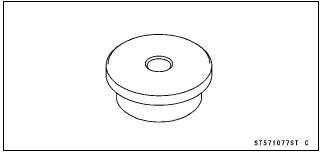

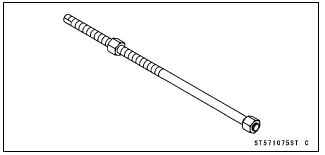

Head Pipe Outer Race Press Shaft: 57001-1075

Steering

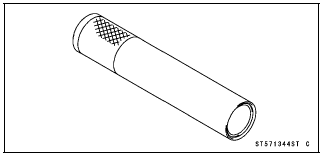

Steering Stem Bearing Driver, 42.5: 57001-1344

Steering

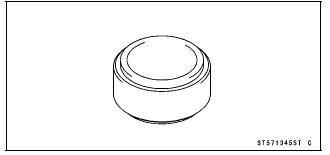

Head Pipe Outer Race Driver, 54.5: 57001-1077

Steering

Steering Stem Bearing Driver Adapter, 41.5: 57001-1345

Steering

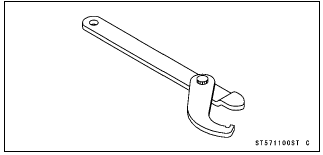

Steering Stem Nut Wrench: 57001-1100

Steering

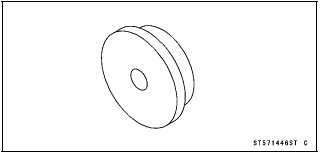

Head Pipe Outer Race Driver, 55: 57001-1446

Steering

Steering

Steering Inspection

  • Refer to the Steering Play Inspection in the Periodic Maintenance chapter.

Steering Adjustment

  • Refer to the Steering Play Adjustment in the Periodic Maintenance chapter.
