Honda PCX125 - Owner's Manual > Service Preparations

Servicing Your Honda / Service Preparations

Maintenance Component Locations

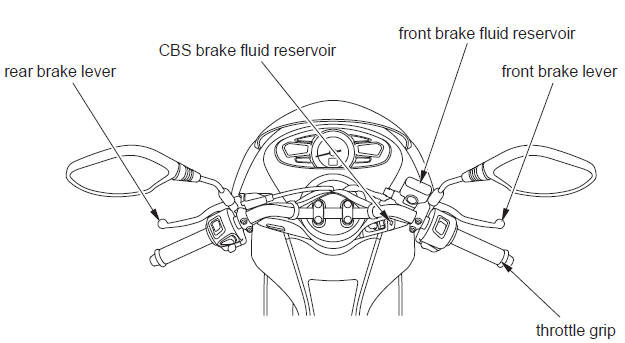

Maintenance Component Locations

  • rear brake lever
  • CBS brake fluid reservoir
  • front brake fluid reservoir
  • front brake lever
  • throttle grip

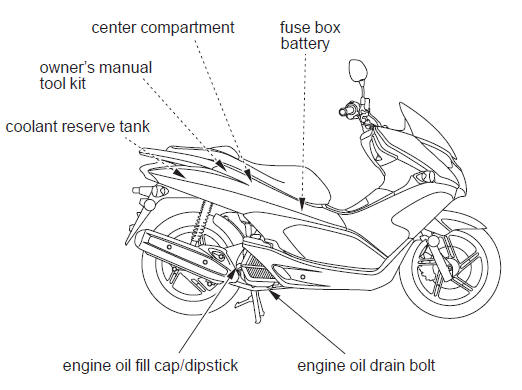

Maintenance Component Locations

  • fuse box battery
  • center compartment
  • owner's manual tool kit
  • coolant reserve tank
  • engine oil fill cap/dipstick
  • engine oil drain bolt

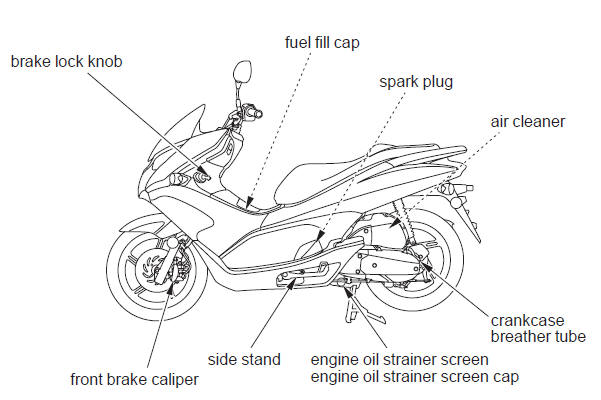

Maintenance Component Locations

  • brake lock knob
  • fuel fill cap
  • spark plug
  • air cleaner
  • front brake caliper
  • side stand
  • engine oil strainer screen fuel fill cap
    engine oil strainer screen cap
  • crankcase breather tube

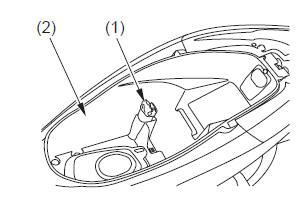

Tool Kit

The tool kit (1) is stored in the center compartment (2) under the seat

An optional, larger tool kit may be available. Check with your Honda dealer's parts department.

CENTER COMPARTMENT

Tool Kit

  1. tool kit
  2. center compartment

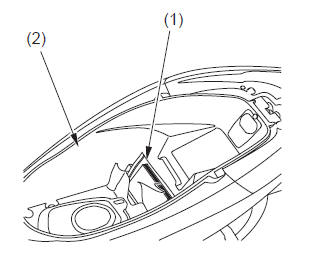

Owner's Manual Storage

Your scooter provides storage for the owner's manual so you'll have it with you for easy reference. Store your owner's manual (and other documents) in the plastic storage bag (1) in the center compartment (2) under the seat.

Be careful not to flood this area when washing your scooter.

CENTER COMPARTMENT

Owner's Manual Storage

  1. storage bag
  2. center compartment
