Service information

GENERAL

NOTICE

• Note the following when replacing the halogen headlight bulb.
  • Wear clean gloves while replacing the bulb. Do not put fingerprints on the headlight bulb, as they may create hot spots on the bulb and cause it to fail.
  • If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol to prevent its early failure.

• A halogen headlight bulb becomes very hot while the headlight is ON, and remains hot for a while after it is turned OFF. Be sure to let it cool down before servicing.
• Be sure to install the dust cover after replacing the headlight bulb.
• Check the battery condition before performing any inspection that requires proper battery voltage.
• A continuity test can be made with the switches installed on the motorcycle.
• Use an electric heating element to heat the coolant for the ECT sensor inspection. Keep flammable materials away from the electric heating element. Wear protective clothing, insulated gloves and eye protection.
• The following color codes are used throughout this section.

Bl = Black
Br = Brown
Bu = Blue
G = Green
Gr = Gray
Lb = Light Blue
Lg = Light Green
O = Orange
P = Pink
R = Red
V = Violet
W = White
Y = Yellow

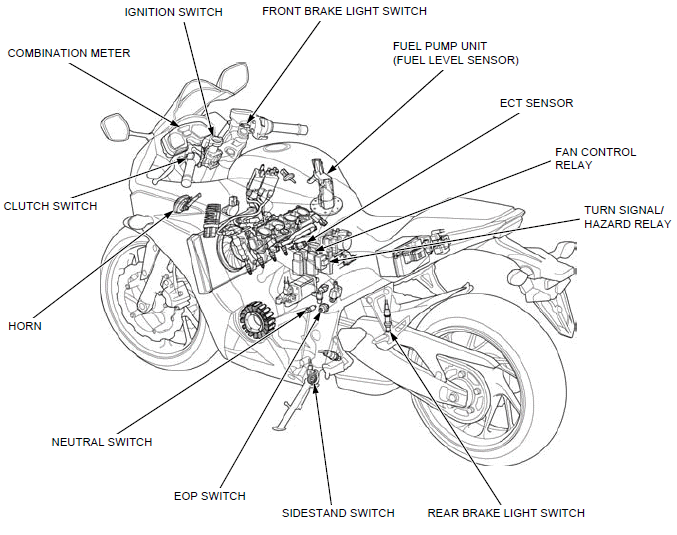

System location

• COMBINATION METER
• CLUTCH SWITCH
• IGNITION SWITCH
• FRONT BRAKE LIGHT SWITCH
• HORN
• NEUTRAL SWITCH
• EOP SWITCH
• SIDESTAND SWITCH
• REAR BRAKE LIGHT SWITCH
• TURN SIGNAL/ HAZARD RELAY
• FAN CONTROL RELAY
• ECT SENSOR
• FUEL PUMP UNIT (FUEL LEVEL SENSOR)
