Royal Enfield Interceptor 650 - Service manual > Rocker Arms in Carriers LH and RH

Engine / Engine Assembly / Rocker Arms in Carriers LH and RH

Exhaust rocker arm in carrier "L"

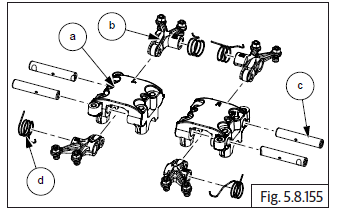

  • Place the carrier (a) on a work table with the mark "L" facing upwards.

Engine Assembly

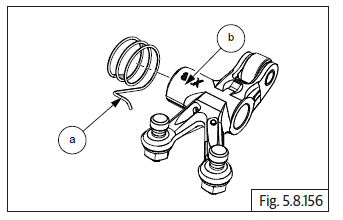

  • Gently depress the spring (a) and install into rocker carrierrs (b).

Engine Assembly

  • Locate rocker arm (b) with the marking "EL" into carrier "L" duly ensuring the following.
  • The roller of the rocker arm is inserted from the side marked "L".
  • The tappet adjustment screws are facing upwards.
  • Ensure the holes are aligned and insert spindle with its small chamfer side in the carrier.
  • Ensure cut away in spindle is correctly aligned to the carrier mounting hole.
  • Align and insert the spindle (c) into rocker carrier and rocker arm.

Intake rocker arm in carrier "L"

  • Locate rocker arm with the marking "IL" into carrier "L" duly ensuring the following.
  • The roller of the rocker arm is inserted from the OPPOSITE side marked "L".
  • The tappet adjustment screws are facing upwards.
  • Ensure the holes are aligned and insert spindle with its small chamfer side in the carrier.
  • Ensure cut away in spindle is correctly aligned to the carrier mounting hole.
  • Align and insert the spindle (c) into rocker carrier and rocker arm.
  • Repeat the above process to assemble rocker arm "ER" and "IR" into carrier "R".

Rocker Carrier on Cylinder Head LH

NOTE

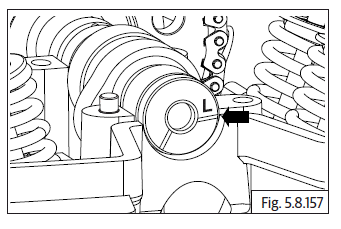

  • Ensure "L" mark on camshaft is aligned to cylinder head.

Engine Assembly

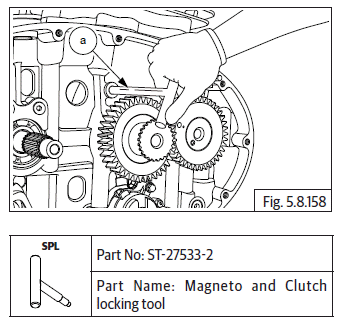

  • Insert special tool (a) in crankcase RH to lock the crankshaft and prevent rotation.

Engine Assembly

  • Ensure the tappet adjuster locknuts and adjusters are fully loosened on the intake and exhaust rocker arms.

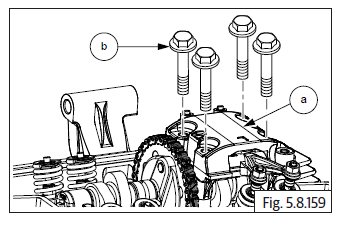

  • Assemble rocker carrier LH (a) on cylinder head LH such that tappet adjusters are above the inlet and exhaust valves.

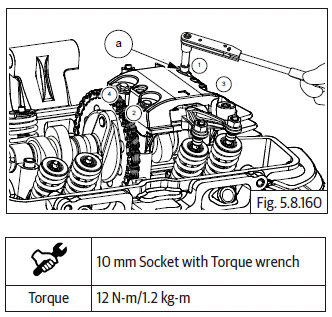

  • Assemble 4 Nos. Hex flange head bolts (M6) (b) on rocker carrier and tighten in a crisscross pattern to torque specified torque.

Engine Assembly

Engine Assembly

  • Remove special tool from crankcase RH side.

Rocker Carrier on Cylinder Head RH

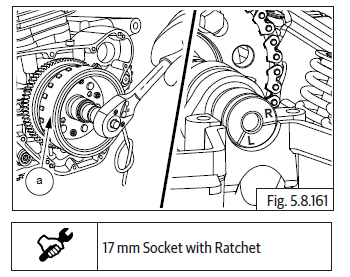

  • Rotate magneto (a) clockwise and ensure reference mark "R" is aligned with cylinder head.

Engine Assembly

  • Ensure the tappet adjuster locknuts and adjusters are fully loosened on the intake and exhaust rocker arms.

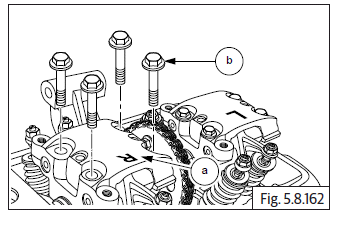

  • Assemble rocker carrier RH (a) on cylinder head RH such that the tappet adjusters are above the inlet and exhaust valves.
  • Assemble 4 Nos. Hex flange head bolts (M6) (b) on rocker carrier (a) and tighten in a crisscross pattern to specified torque.

Engine Assembly

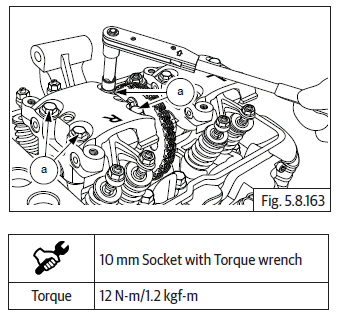

  • Tighten the bolts (a) to specified torque.

Engine Assembly

  • Ensure the special tools are removed from position after tightening bolts.
