Royal Enfield Interceptor 650 - Service manual > Rocker Arms from Rocker Carriers LH & RH

Engine / Engine Dismantling / Rocker Arms from Rocker Carriers LH & RH

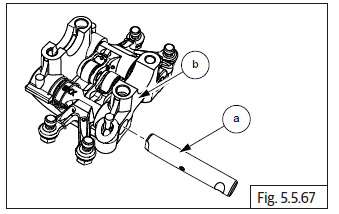

  • Thread in a Hex flange bolt (M6) (a) into the threaded portion of rocker shaft (b).
  • Gently pull out rocker shaft from rocker carrier, duly supporting the rocker arms.
  • Remove rocker arms inlet and exhaust from the rocker carrier.
  • Repeat the procedures above to remove rocker arms from the other carrier.

Engine Dismantling

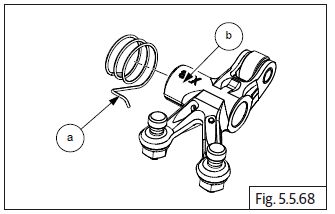

  • Gently depress the spring (a) and remove from rocker carrierrs (b).

Engine Dismantling

Timing Chain Tensioner

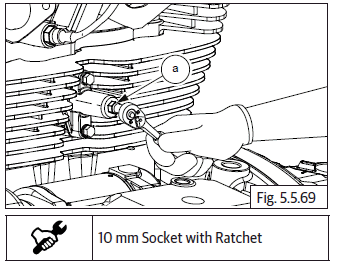

  • Loosen and remove center Hex flange bolt (M6) (a) from cylinder barrel.

Engine Dismantling

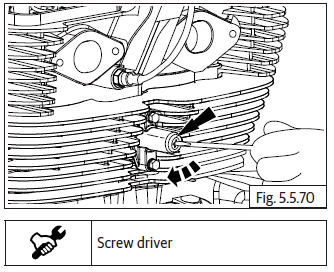

  • Insert screw driver into chain tensioner housing and turn clockwise until pad is free.

Engine Dismantling

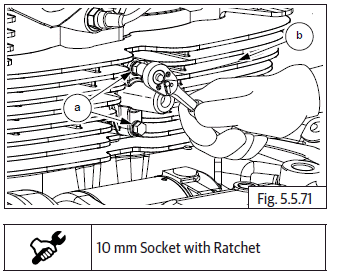

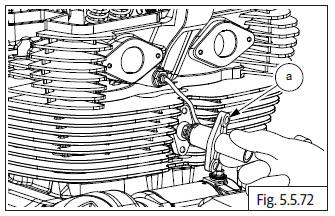

  • Loosen and remove 2 Nos. Hex flange bolts (M6) (a) from cylinder barrel (b).

Engine Dismantling

  • Remove timing chain pad adjuster (a) from cylinder barrel.

Engine Dismantling

Cam Shaft, Sprocket & Chain

  • Rotate magneto rotor in clockwise direction, till one of the Hex head bolts on cam chain sprocket appears at the top most position.

Engine Dismantling

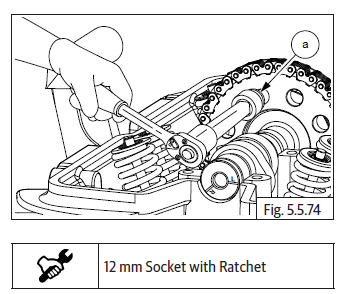

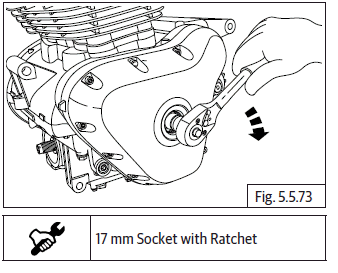

  • Loosen and remove 1 st Hex head bolt (M8) (a) from cam sprocket.

Engine Dismantling

  • Rotate magneto rotor in clockwise direction till other bolt is visible at top most position.

Engine Dismantling

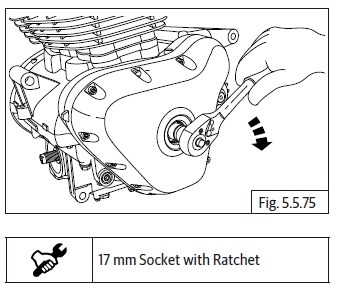

  • Loosen and remove 2 nd Hex head bolt (M8) (a) from cam sprocket.

Engine Dismantling

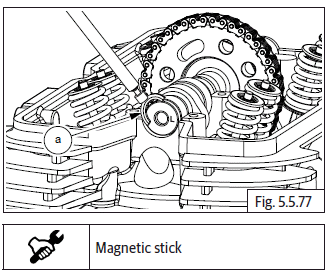

  • Remove "C" washer (a) from groove in cylinder head LH to release cam shaft.

Engine Dismantling

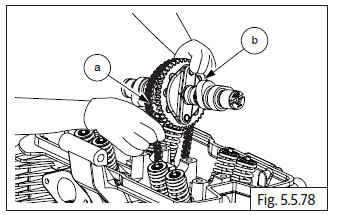

  • Gently release timing chain (a) from camshaft sprocket and remove camshaft (b) from cylinder head assembly.

Engine Dismantling

  • Support timing chain suitably at the top to prevent it from dropping into the crankcase.

Magneto Cover

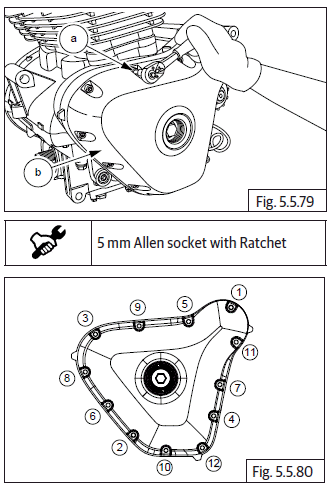

  • Loosen and remove 12 Nos. Hex socket head bolts (M6) (a) in crisscross pattern to remove magneto cover (b) from LH.

Engine Dismantling

  • The magneto cover may be hard to remove from crankcase, due to the magnetic force from the magneto acting on the stator coil.

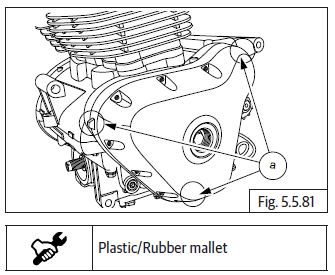

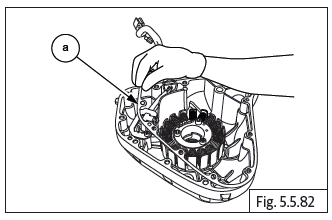

  • Gently tap on the tabs (a) with a plastic / rubber mallet, on the inside edges of the magneto cover, to remove.

Engine Dismantling

  • Remove gasket (a).

Engine Dismantling

CAUTION Do not use a sharp tool to scrap the gasket material from the joint faces.

If required scrap only with a soft and blunt tool.

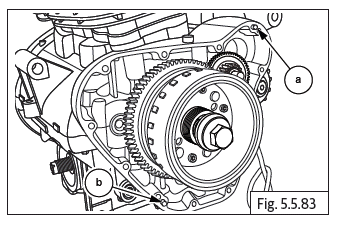

  • Remove the 2 dowel pins (a) and (b) from the crankcases/magneto cover.

Engine Dismantling
