Royal Enfield Interceptor 650 - Service manual > Rider Seat from Frame

Chassis / Side Panels and Rider Seat / Rider Seat from Frame

  • Seat lock is located near utility box.

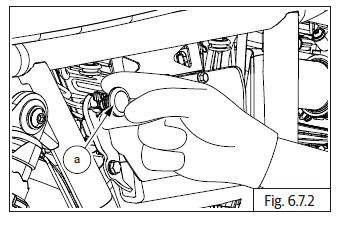

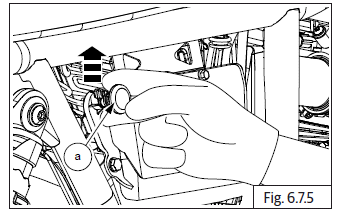

  • Pull/Release seat lock (a) to remove seat from motorcycle.

Side Panels and Rider Seat

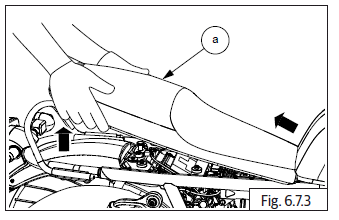

  • Gently lift and pull seat (a) from rear side of motorcycle.

Side Panels and Rider Seat

NOTE

  • Place the seat in a safe location to prevent from scratches and dirt.

Seat Latch Assembly from Frame

  • The seat latch assembly (a) is fixed on frame near engine control unit (ECU).

Side Panels and Rider Seat

  • Gently release the cable (a) from utility box by pulling it out carefully.

Side Panels and Rider Seat

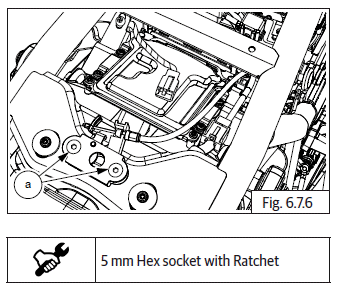

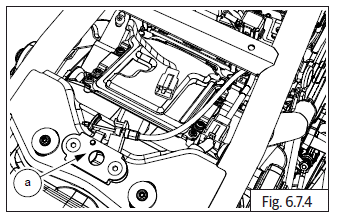

  • Loosen and remove 2 Nos. Hex socket screws (M6) (a) holding seat latch assembly to frame.

Side Panels and Rider Seat

Side Panel LH

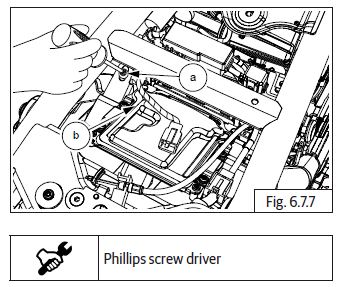

  • Loosen and remove LH side panel fitting screw (a) at top of frame near engine control unit (ECU) (b) (below seat assembly).

Side Panels and Rider Seat

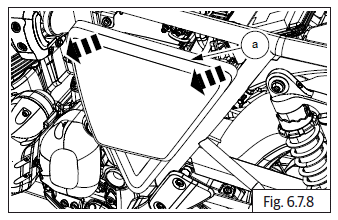

  • Gently slide out side panel LH (a) from frame.

Side Panels and Rider Seat

Inspection

  • Inspect and replace seat latch assembly if stuck or jammed.
  • Inspect latch cable for free movement/broken inner strands. Replace seat latch assembly if cable is damaged.

Assembly

Side Panel LH

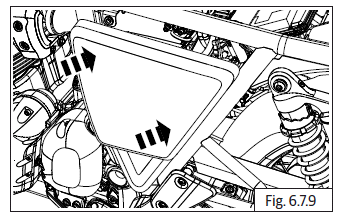

  • Slide LH panel from bottom to fit into frame (a).

Side Panels and Rider Seat

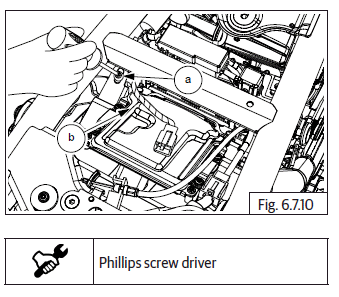

  • Locate LH side panel fitting screw (a) at top of frame near engine control unit (ECU) (b) (below seat assembly) and tighten.

Side Panels and Rider Seat

    See also:

     Royal Enfield Interceptor 650 - Service manual > Side Panels and Rider Seat

     Royal Enfield Interceptor 650 - Service manual > Seat Latch Assembly on Frame

    Locate seat latch on frame with the cable towards the RH side. Align mounting holes and tighten with 2 Nos. Hex socket screws (M6) (a). Route the cable assembly (a) through frame and locate cable outer into slot in utility box and gently press in place.
