Kawasaki Z1000SX - Service manual > Oxygen Sensor - not activated (Service Code 33, Equipped Models)

Oxygen Sensor Removal/Installation

• Refer to the Oxygen Sensor Removal/Installation in the Electrical System chapter.

Oxygen Sensor Inspection

• Warm up the engine thoroughly until the radiator fan starts.
• Turn the ignition switch OFF.
• Remove the right fairing (see Lower Fairing Removal in the Frame chapter).

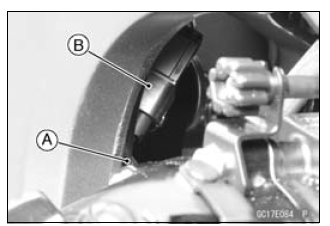

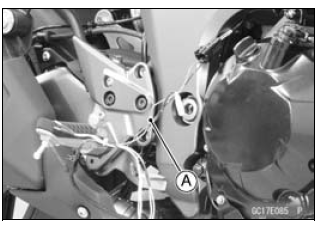

• Open the clamp [A], and pull out the oxygen sensor lead connector [B].

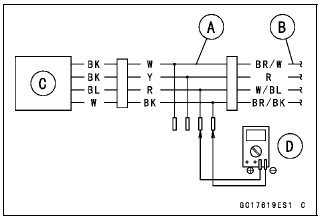

• Disconnect the oxygen sensor lead connector (4 pins connector) and connect the harness adapter [A] between these connectors.

  [B] Main Harness
  [C] Oxygen Sensor

Special Tool - Measuring Adapter: 57001-1700

• Connect a digital meter [D] to the harness adapter leads.

Oxygen Sensor Output Voltage
 Connections to Adapter:
  Digital Meter (+) → R (sensor BL) lead
  Digital Meter (−) → BK (sensor W) lead

• Remove:
  Air Cleaner Housing (see Air Cleaner Housing Removal)

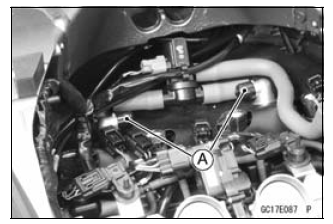

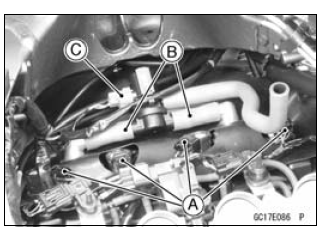

• Disconnect the stick coil connectors [A].
• Separate the air switching valve hoses [B] from the air suction valve covers.
  • Do not disconnect the air switching valve connector [C].

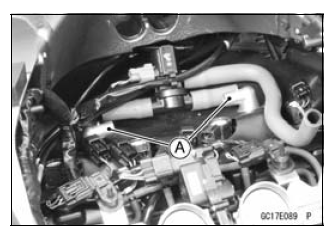

• Install the suitable plugs [A] on the fitting of the air suction valve covers, and shut off the secondary air.
• Connect the stick coil connectors.
• Install the air cleaner housing temporarily (see Air Cleaner Housing Installation).

• Remove the fuel hose (see Fuel Hose Replacement in the Periodic Maintenance chapter).
• Connect the following parts temporary.

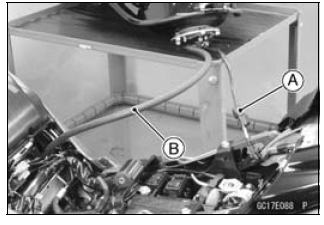

  Fuel Pump Lead Connector [A]
  Fuel Hose [B]

Special Tool - Fuel Hose: 57001-1607

• Start the engine, and let it idle.
• Measure the output voltage with the connector joined.

Output Voltage (with Plugs)
 Standard: DC 0.7 V or more

• Next, remove the air cleaner housing to take out the plugs from the fittings [A] of the air suction valve covers.
• Install the air cleaner housing.
• Start the engine, and let it idle.
• Measure the output voltage with the connector joined.

Output Voltage (without Plugs)
 Standard: DC 0.2 V or less

• Turn the ignition switch OFF.

If the reading is out of the standard (with plugs: DC 0.7 V or more, without plugs: DC 0.2 V or less), remove the ECU and check the wiring for continuity between main harness connectors.

• Disconnect the ECU and sensor connectors.

Wiring Inspection

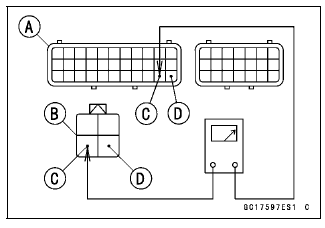

 ECU Connectors [A] ←→
  Oxygen Sensor Connector [B]
   W/BL lead (ECU terminal 32) [C]
   BR/BK lead (ECU terminal 33) [D]

If the wiring is good, replace the sensor.

If the reading is within the standard (with plugs: DC 0.7 V or more, without plugs: DC 0.2 V or less), check the ECU for its ground and power supply (see ECU Power Supply Inspection).

If the ground and power supply are good, replace the ECU (see ECU Removal/Installation).

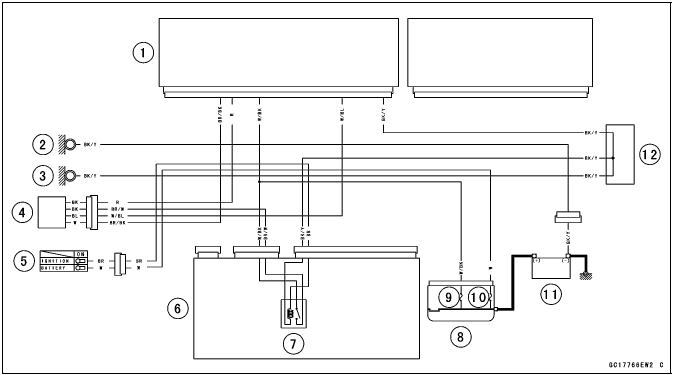

Oxygen Sensor Circuit

1. ECU
2. Meter Ground
3. Frame Ground
4. Oxygen Sensor
5. Ignition Switch
6. Relay Box
7. ECU Main Relay
8. Starter Relay
9. FI Fuse 15 A
10. Main Fuse 30 A
11. Battery 12 V 8 Ah
12. Water-proof Joint C
