• Place a tray under the engine oil filter.

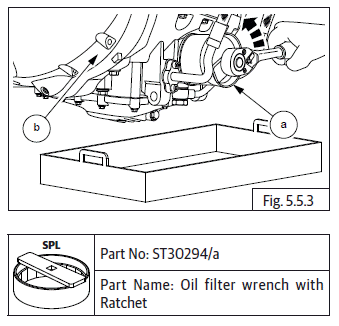

• Loosen and remove oil filter (a) located on front bottom of engine (b) using special tool.

Inlet Manifold Rubber Flange

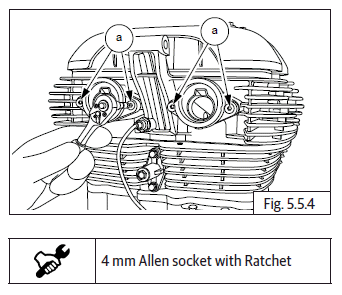

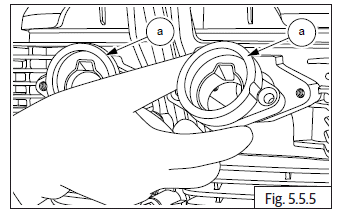

• Loosen and remove 4 Nos. Hex socket head bolts (M5) (a) located on inlet manifold of engine.

• Remove 2 Nos. inlet manifold rubber flange (a) from engine.

Starter Motor

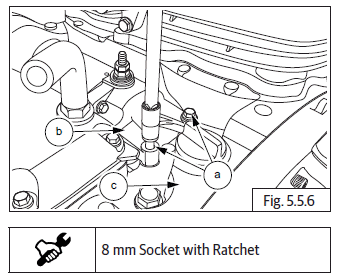

• Loosen and remove 2 Nos. Hex flange head mounting bolts (M5) (a) holding starter motor (b) to crankcase (c).

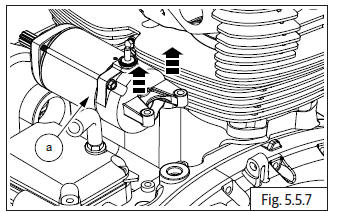

• Gently pull out and lift starter motor (a) from engine.

NOTE

• Do not tap on the starter motor while removing it. Tapping may damage the internal components.

Breather Hose

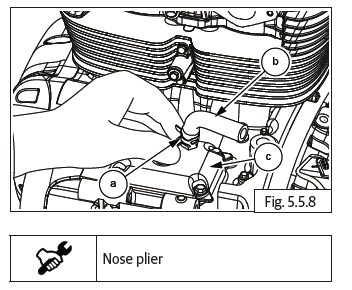

• Release the clamp (a) to disconnect breather hose (b) from breather box (c).

Breather Box Cover

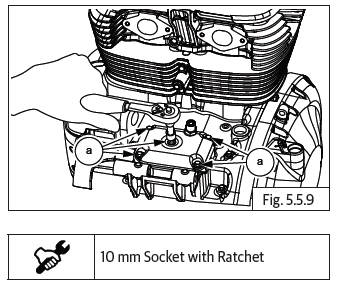

• Loosen and remove the 5 Nos. Hex head flange bolts (M6) (a).

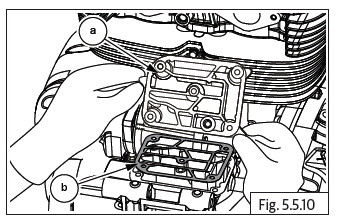

• Gently remove the breather box cover (a) along with gasket (b).

Spark Plugs

CAUTION Before removing the spark plugs, blow away any dirt accumulated in the spark plug area with compressed air to prevent it from falling into cylinder head.

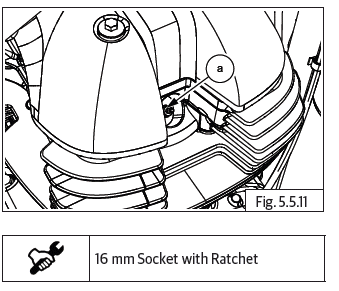

• Loosen and remove RH spark plug (a) from RH cylinder head.

• Repeat the procedure to remove LH spark plug.

Clutch Actuating Lever Assembly

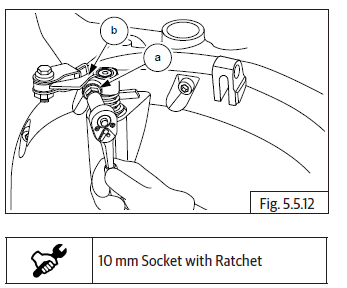

• Loosen and remove Hex head bolt (M6) (a) from clutch actuating lever assembly (b).

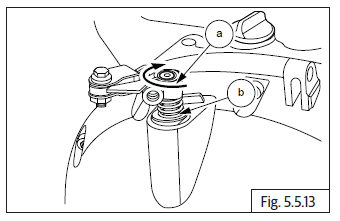

• Rotate clutch actuating lever (a) in clockwise direction to release tension in spring (b).

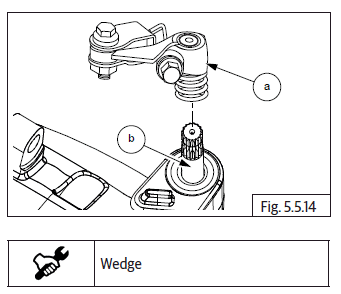

• Remove clutch actuating lever (a) from clutch shaft (b) on cover.

NOTE

• Use a suitable wedge to slightly expand the slot in the clutch actuating arm and gently lift from the shaft.
