Royal Enfield Interceptor 650 - Service manual > Oil Bypass
Engine / Components Assembly on Engine / Oil Bypass

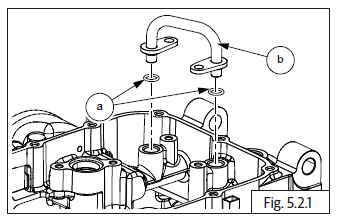

- Ensure O-rings (a) are located properly.
- Install oil bypass pipe (b) into lower crankcase oil gallery.

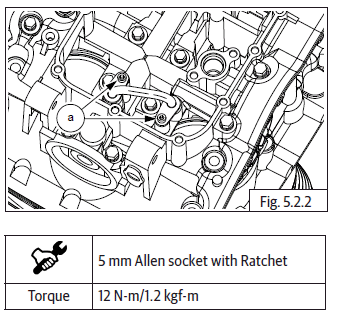

- Tighten 2 Nos. Hex socket head screw (M6) (a) to specified torque.
Oil Strainer
- Ensure O-ring is located properly.
- Install oil strainer (a) into lower crankcase oil gallery and tighten with 2 Nos. Hex flange head bolts (M6) (b) to specified torque.
Oil Pan

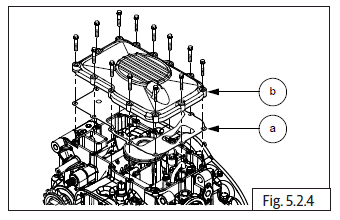

- Locate oil pan gasket (a) on crankcase and assemble oil pan (b).

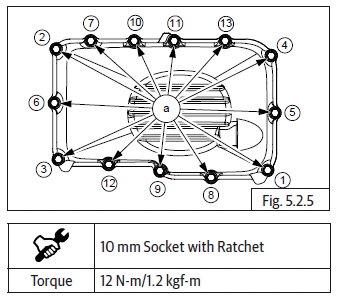

- Assemble and tighten 13 Nos. Hex flange head bolts (M6) (a) in crisscross pattern to specified torque.
Oil Pressure Switch

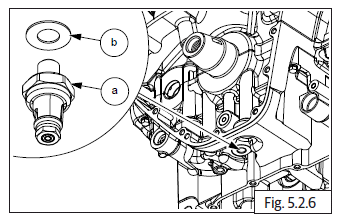

- Assemble oil pressure switch (a) along with washer (b) on crankcase.

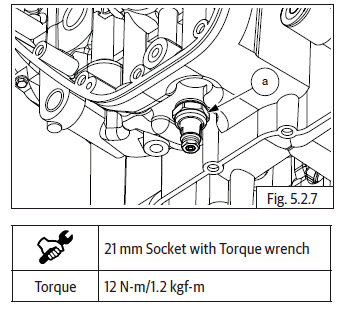

- Tighten oil pressure switch (a) to specified torque.
Drain Plug

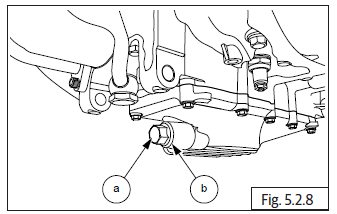

- Assemble magnetic drain plug (M14) (a) with new washer (b) on the front end of the oil sump at the bottom of the engine.

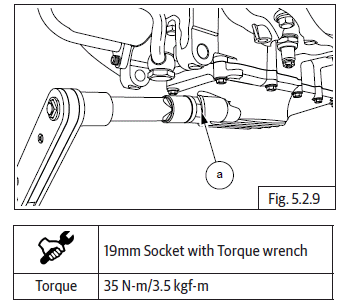

- Tighten drain plug (a) to specified torque.
Oil Filter

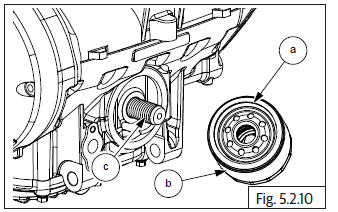

- Ensure O-ring (a) is seated properly over oil filter.
- Apply thin layer of fresh engine oil over O-ring.
- Locate oil filter (b) on the threaded stud (c) in the front of the engine.

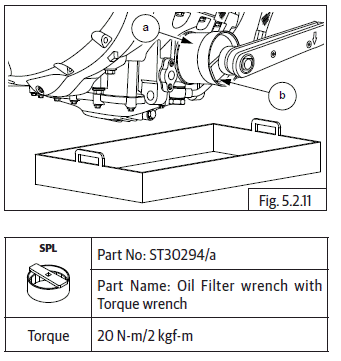

- Tighten oil filter (a) using special tool (b) to specified torque.
