Yamaha MT-07 - Owner's Manual > Ignition circuit cut-off system

Instrument and control functions / Adjusting the shock absorber assembly / Ignition circuit cut-off system

This system prevents in-gear engine starts unless the clutch lever is pulled and the sidestand is up. Also, it will stop the running engine should the sidestand be lowered while the transmission is in gear.

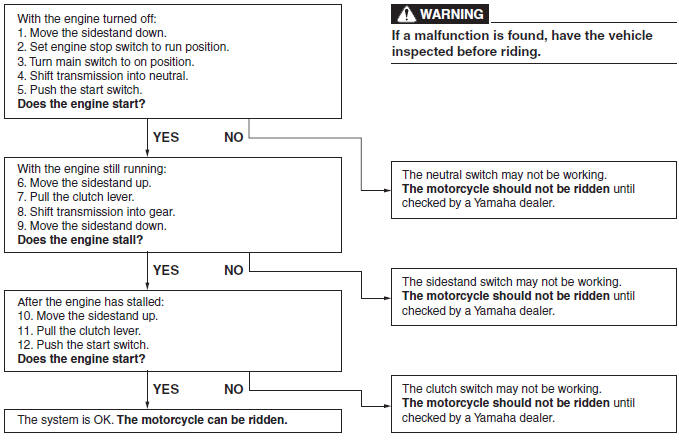

Periodically check the system via the following procedure.

TIP

  • This check is most reliable if performed with a warmed-up engine.

Ignition circuit cut-off system



For your safety - pre-operation checks

Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection and maintenance procedures and schedules described in the Owner's Manual.

WARNING

Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.

Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.

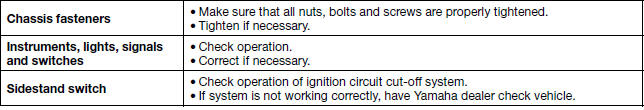

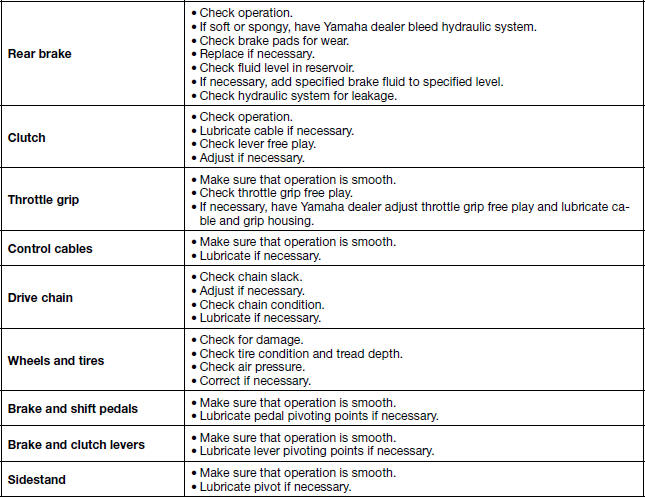

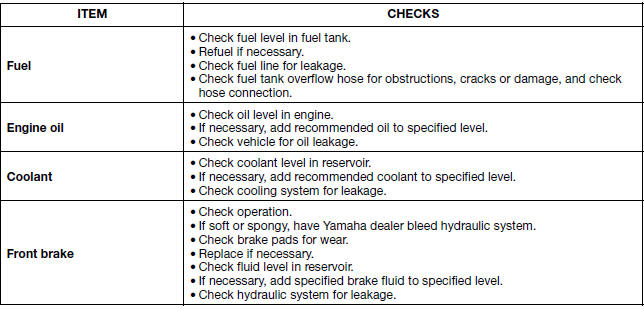

Before using this vehicle, check the following points:

For your safety - pre-operation checks

For your safety - pre-operation checks

For your safety - pre-operation checks
