Yamaha MT-07 - Owner's Manual > Helmet holding cable

A helmet holding cable is located on the bottom of the passenger seat. Use this cable in conjunction with the screwdriver to secure a helmet to the vehicle.

1. Passenger seat
2. Helmet holding cable
3. Screwdriver

To secure a helmet with the helmet holding cable

1. Remove the passenger seat.

2. Remove the screwdriver from its holders on the passenger seat, and then remove the helmet holding cable from the screwdriver.

TIP

When removing the screwdriver, slide the screwdriver toward the "" mark on the passenger seat.

1. Screwdriver
2. "" mark
3. "" mark

3. Pass the helmet holding cable through the buckle on the helmet strap.

4. Hook the cable loops over the screwdriver, install the screwdriver by first inserting the screwdriver into the holder with the "" mark, and then slide the screwdriver toward the holder with the "" mark.

TIP

Make sure that the screwdriver is securely positioned between its holders, and then position the cable loops toward the middle of the screwdriver before installing the passenger seat.

1. Helmet
2. Helmet holding cable
3. Screwdriver
4. Holder

5. Install the passenger seat.

WARNING! Never ride with a helmet attached to the helmet holder, since the helmet may hit objects, causing loss of control and possibly an accident.

To release a helmet from the helmet holding cable

1. Remove the passenger seat.

2. Remove the screwdriver, then remove the helmet holding cable from the helmet.

3. Store the cable under the seat by hooking the cable loops over the screwdriver, install the screwdriver in its original position, and then hook the helmet holding cable over the hook on the bottom of the passenger seat.

1. Screwdriver
2. Helmet holding cable
3. Hook

4. Install the passenger seat.

Storage compartment

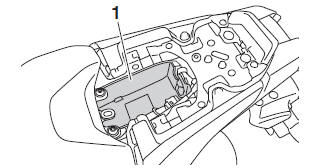

The storage compartment is located as shown.

1. Storage compartment cover

1. Storage compartment

When storing documents, wrap them in a plastic bag so they will not get wet.

When washing the vehicle, avoid spraying water directly under the seat.

WARNING

• Do not exceed the load limit of 1.5 kg (3 lb) for the storage compartment.
• Do not exceed the maximum load of 172 kg (379 lb) for the vehicle.
