Kawasaki Z1000SX - Owner's Manual > Fuel

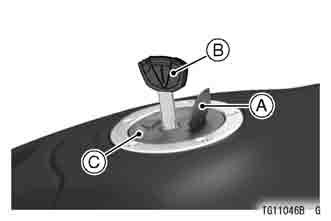

Fuel Tank Cap

To open the fuel tank cap, pull up the key hole cover. Insert the ignition key into the fuel tank cap and turn the key to the right.

To close the cap, push it down into place with the key inserted. The key can be removed by turning it to the left to the original position. Close the key hole cover.

NOTE

• The fuel tank cap cannot be closed without the key inserted, and the key cannot be removed unless the cap is locked properly.
• Do not push on the key to close the cap, or the cap cannot be locked.

1. Key Hole Cover
2. Ignition Key
3. Fuel Tank Cap

Fuel

Fuel Requirements:

Your Kawasaki engine is designed to use only unleaded gasoline with a minimum octane rating shown below.

Never use gasoline with an octane rating lower than the minimum specified by Kawasaki to prevent severe engine damage.

The octane rating of a gasoline is a measure of its resistance to detonation or "knocking". The term commonly used to describe a gasoline's octane rating is the Research Octane Number (RON).

NOTICE Do not use leaded gasoline, as this will destroy the catalytic converter (For further information, refer to the "Catalytic Converter" section in the "How to Ride the Motorcycle" chapter.).

NOTICE If engine "knocking" or "pinging" occurs, use a different brand of gasoline of a higher octane rating.

If this condition is allowed to continue, it can lead to severe engine damage. Gasoline quality is important. Fuels of low quality or not meeting standard industry specifications may result in unsatisfactory performance. Operating problems that result from the use of poor quality or no recommended fuel may not be covered under your warranty.

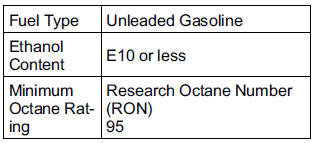

Fuel Type and Octane Rating

Use clean, fresh unleaded gasoline with an ethanol volume content not more than 10 % and an octane rating equal to or higher than that shown in the table.

NOTICE Do not use any fuel that contains more ethanol or other oxygenates than specified for E10 fuel* in this vehicle. Damage to the engine and fuel system, or engine starting and/or performance problems may result from the use of improper fuel.

* E10 means fuel containing up to 10% ethanol as specified by European directive.

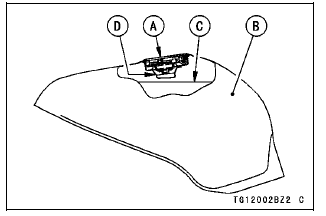

Filling the Tank:

Avoid filling the tank in the rain or where heavy dust is blowing so that the fuel does not get contaminated.

1. Tank Cap
2. Fuel Tank
3. Top Level
4. Filler Neck

WARNING Gasoline is extremely flammable and can be explosive under certain conditions, creating the potential for serious burns. Turn the ignition switch off. Do not smoke.

Make sure the area is well ventilated and free from any source of flame or sparks; this includes any appliance with a pilot light.

Never fill the tank completely to the top. If the tank is filled completely to the top, heat may cause the fuel to expand and overflow through the vents in the tank cap.

After refueling, make sure the tank cap is closed securely. If gasoline is spilled on the fuel tank, wipe it off immediately.

NOTICE Certain ingredients in gasoline may cause paint fading or damage.

Be extra careful not to spill fuel during refueling.
