Kawasaki Z1000SX - Service manual > Exploded View

Fuel System (DFI) / Exploded View

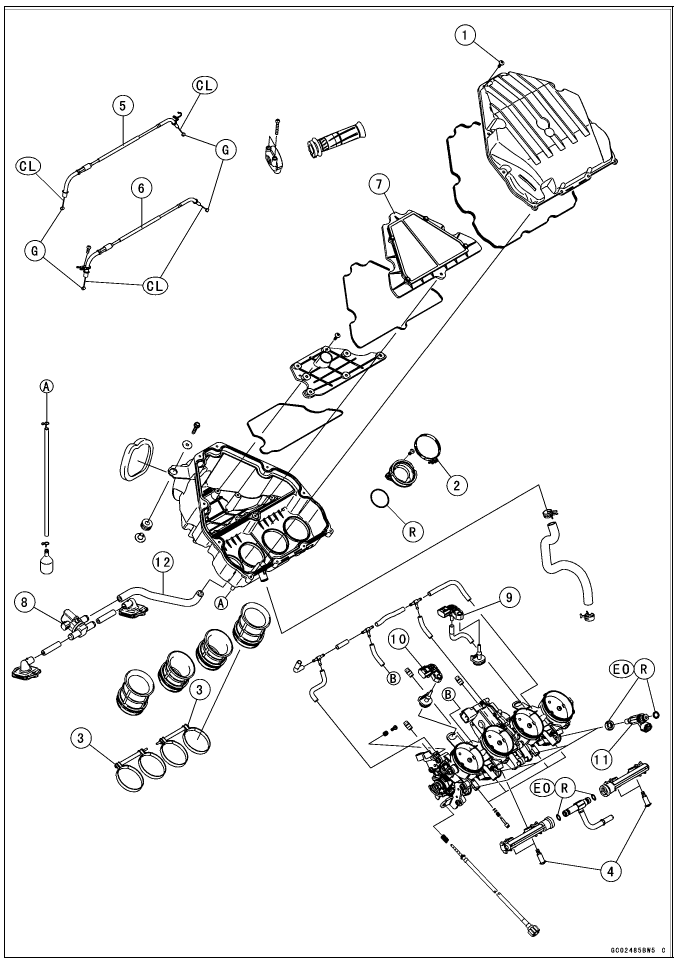

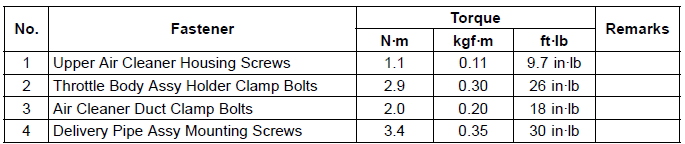

Exploded View

Exploded View

  1. Throttle Cable (Accelerator)
  2. Throttle Cable (Decelerator)
  3. Air Cleaner Element
  4. Air Switching Valve
  5. Intake Air Pressure Sensor #2
  6. Intake Air Pressure Sensor #1
  7. Fuel Injectors
  8. other than CAL and SEA-B1 Models

CL: Apply cable lubricant.
EO: Apply engine oil
G: Apply grease.
R: Replacement Parts

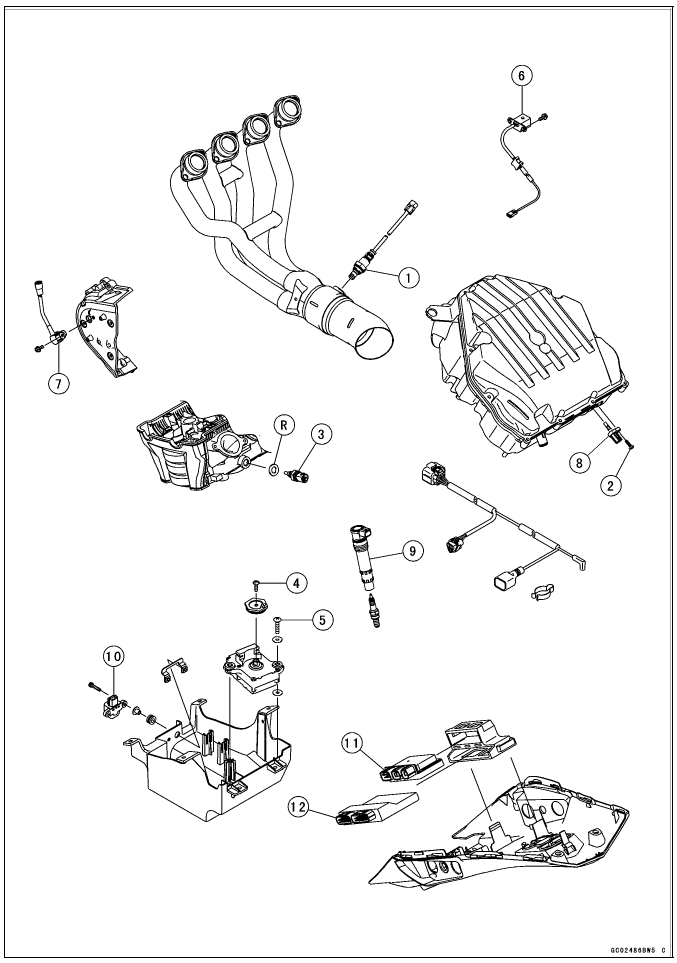

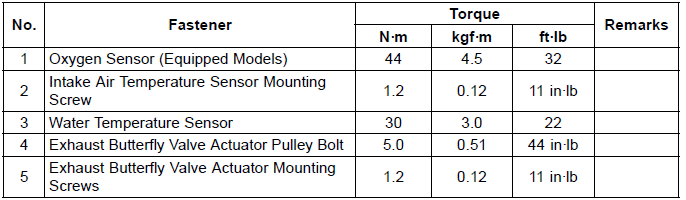

Exploded View

Exploded View

  1. Crankshaft Sensor
  2. Speed Sensor
  3. Intake Air Temperature Sensor
  4. Stick Coils
  5. Vehicle-down Sensor
  6. Relay Box
  7. ECU

R: Replacement Parts

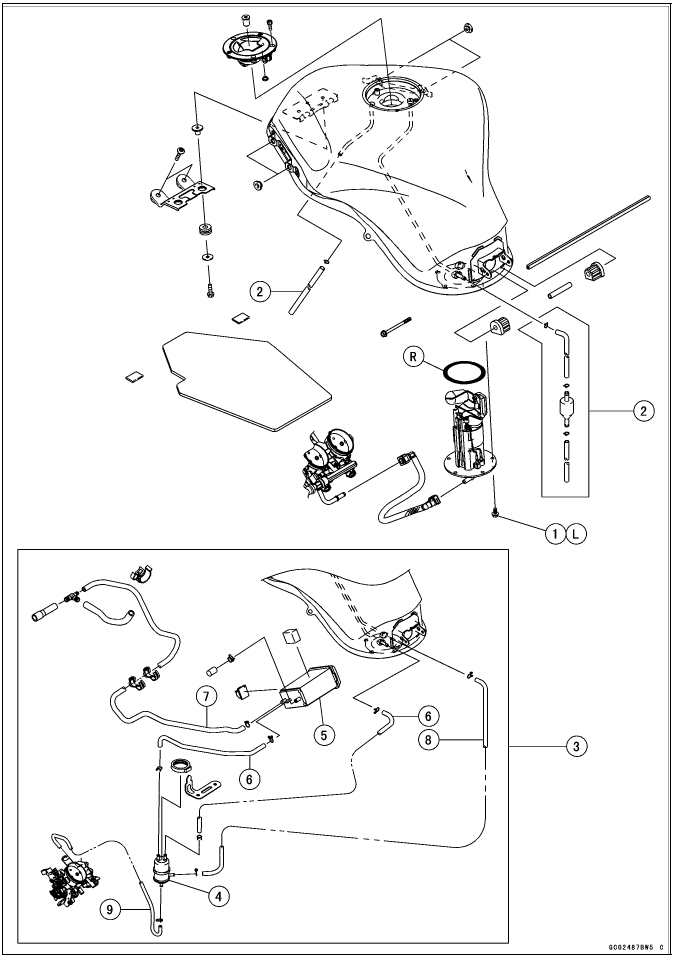

Exploded View

Exploded View

  1. Other than CAL and SEA-B1 Models
  2. CAL and SEA-B1 Models
  3. Separator
  4. Canister
  5. Blue Hose (Breather)
  6. Green Hose (Purge)
  7. Red Hose (Return)
  8. White Hose (Vacuum)

L: Apply a non-permanent locking agent.
R: Replacement Parts
