Kawasaki Z1000SX - Service manual > Cylinder Removal

Engine Top End / Cylinder, Pistons / Cylinder Removal

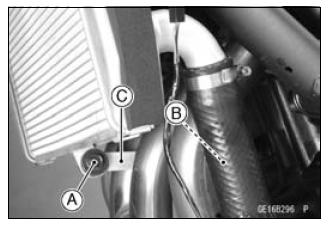

  • Remove:
    Lower Radiator Bolt [A]
    Radiator Bracket Bolt [B]
    Radiator Bracket [C]
    Cylinder Head (see Cylinder Head Removal)
    Engine Bracket (see Engine Removal in the Engine Removal/ Installation chapter)

Cylinder, Pistons

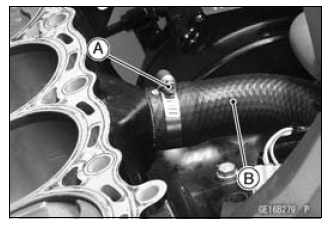

  • Remove:
    Water Hose Clamp Screw (Loosen) [A]
    Water Hose [B]

Cylinder, Pistons

  • Remove:
    Upper Engine Mounting Bolts (Both Sides) [A]
  • Loosen:
    Upper Adjusting Collar Locknut [B]
    Special Tool - Engine Mount Nut Wrench [C]: 57001-1450
  • Loosen:
    Upper Adjusting Collar [D]

Cylinder, Pistons

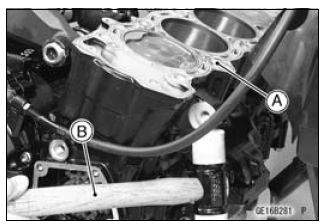

  • Remove:
    Cylinder [A]

NOTE

  • If it is hard to remove it, tap lightly using a plastic-faced mallet [B].

Cylinder, Pistons

Cylinder Installation

NOTE

  • If a new cylinder is used, use new piston ring.

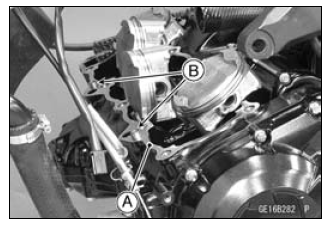

  • Replace the cylinder gasket [A] with a new one.
  • Install the dowel pins [B] and new cylinder gasket.
  • Apply molybdenum disulfide oil solution to the cylinder bore.

Cylinder, Pistons

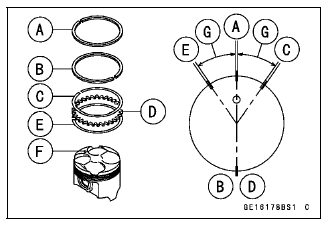

  • The piston ring openings must be positioned as shown in the figure. The openings of the oil ring steel rails must be about 30 - 40º of angle from the opening of the top ring.

    Top Ring [A]
    Second Ring [B]
    Upper Oil Ring Steel Rail [C]
    Oil Ring Expander [D]
    Lower Oil Ring Steel Rail [E]
    Dent [F]
    30 - 40º [G]

Cylinder, Pistons

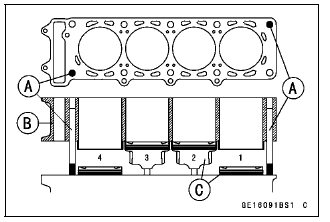

  • Position the crankshaft at #2, 3 piston TDC.
  • Prepare two auxiliary head bolts with their head cut.
    • Install the two cylinder head bolts [A] diagonally in the crankcase.
  • Install the cylinder block [B].

    Pistons [C]

    • First insert the #2, 3 pistons, and then rotate the crankshaft at 90º angle.
  • Tighten the upper engine mounting bolts and engine bracket bolts after cylinder head bolts tightend.

Cylinder, Pistons

Piston Removal

  • Remove the cylinder (see Cylinder Removal).

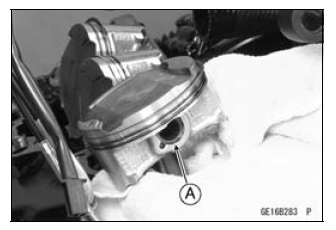

  • Place a clean cloth under the pistons and remove the piston pin snap ring [A] from the outside of each piston.

Cylinder, Pistons

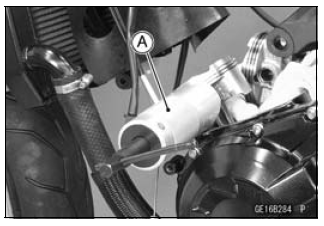

  • Remove the piston pins.

    Special Tool - Piston Pin Puller Assembly [A]: 57001-910

  • Remove the pistons.

Cylinder, Pistons

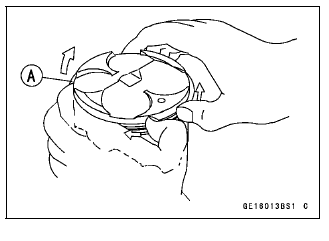

  • Carefully spread the ring opening with your thumbs and then push up on the opposite side of the ring [A] to remove it.
  • Remove the 3-piece oil ring with your thumbs in the same manner.

Cylinder, Pistons
