Royal Enfield Interceptor 650 - Service manual > Cylinder Head
- Remove oil temperature sensor.
CAUTION Cylinder bolts are one time usage only. Always use new head bolts during installation. Dispose old head bolts suitably.

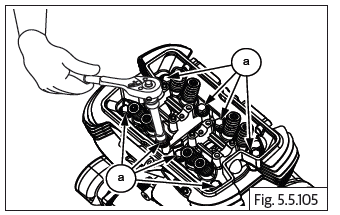

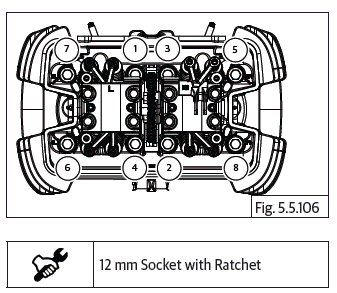

- Loosen and remove 8 Nos. Hex head bolts (M10) (a) in crisscross pattern on cylinder head.

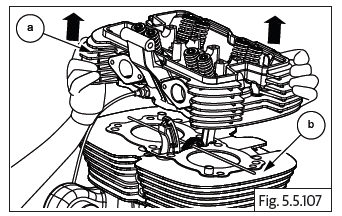

- Support cam chain suitably and gently remove cylinder head (a) from cylinder barrel (b).

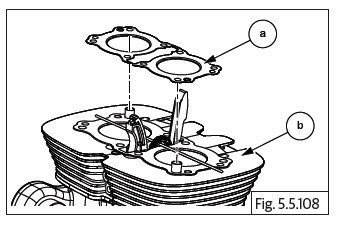

- Remove the cylinder head gasket (a) from cylinder barrel (b).
Components from Cylinder Head
Valves and Springs

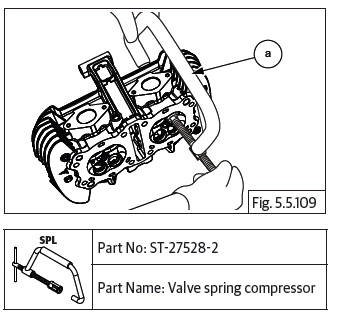

- Compress valve spring with special tool (a).

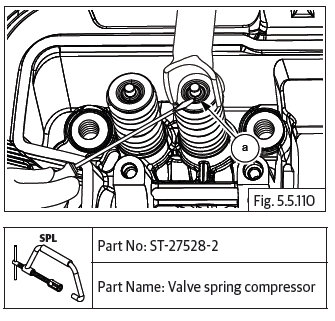

- Remove the cotters (a) on valve stem at the top.
- Gently loosen the screw on valve spring com- pressor, till the valve spring tension is completely released and remove the special tool.
CAUTION Valve spring under high tension when compressed.
Release valve spring compressor tool slowly and with care.

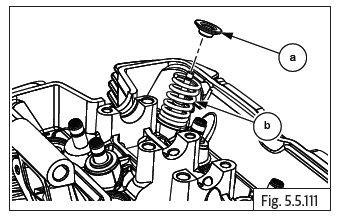

- Remove the retainer, valve spring (a) from the top of the valve spring (b).

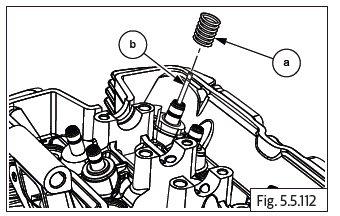

- Remove valve spring (a) from valve stem (b).

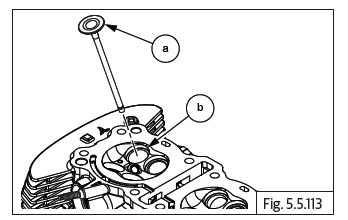

- Remove valve (a) from cylinder head (b) by pulling it out from the cylinder head inside.

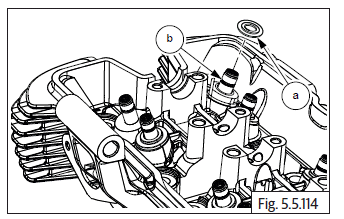

- Remove valve stem seal (a) from valve guide (b).
- Follow the same procedure to remove the other valves from the cylinder head.
Floating Chain Pad

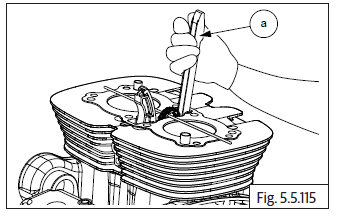

- Remove the floating chain pad (a) from front end of the cylinder barrel.
Cylinder Barrel

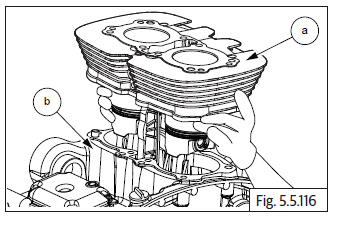

- Slightly tilt and gently remove the cylinder barrel (a) from crankcase (b).
Pistons

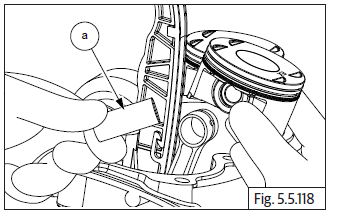

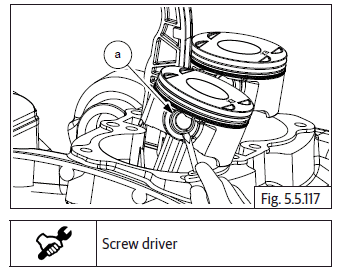

- Remove the circlip (a) from piston.
- Gently push out the gudgeon pin (a) to release the piston.
- Repeat the procedure for other piston.
Oil Pressure Switch

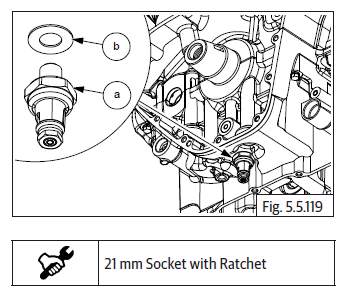

- Loosen and remove pressure switch (a) along with washers (b) from bottom of the crankcase RH.
Oil Pan
- Support upper crankcase on suitable wedges such that the oil pan is facing upwards.

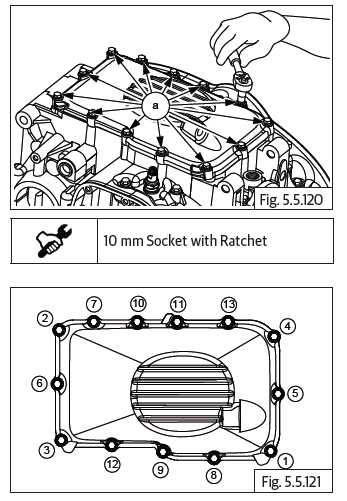

- Loosen and remove the 13 Nos. Hex bolts (M6) (a) in crisscross pattern from sump.

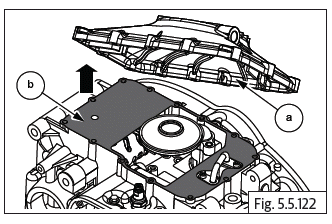

- Remove sump cover (a) along with gasket (b) from bottom crankcase.
