Royal Enfield Interceptor 650 - Service manual > Components Sub Assembly in Upper Crankcase
Crankshaft Journal Bearings
NOTE
- In case the crankshaft is being resued, please Do not disturb OR remove the journal bearings from the crankcase.
- Refer journal bearing selection chart before installing journal bearings into crankcase.
- Ensure journal bearings are cleaned and well lubricated.
CAUTION Install journal bearings carefully by hand. Do not use any tool. It may scratch the component.

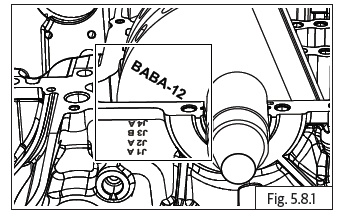

- Match crankcase bearing code with the crankshaft code.
- Select appropriate bearing and assemble journal bearings on crankcase from LH side order.

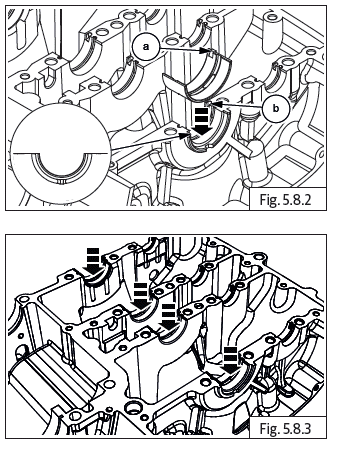

- Locate crankshaft journal bearing in upper crankcase and ensure that journal bearings (a) are seated properly on crankcase (b).
Balancershaft Journal Bearings
NOTE
- In case the balancershaft is being resued, please Do not disturb OR remove the journal bearings from the crankcase.
- Refer journal bearing selection chart before installing journal bearings into crankcase.
- Ensure journal bearings are cleaned and well lubricated.
CAUTION Install journal bearing carefully by hand. Do not use any tool. It may scratch the component.

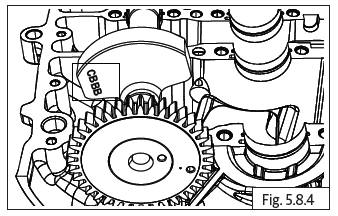

- Match crankcase bearing code with balancer shaft code.
- Select appropriate bearing and assemble journal bearings on crankcase from LH side.

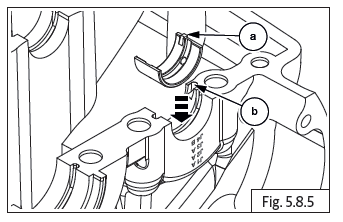

- Align mark (a) of journal bearing with edge (b) in crankcase for balancer shaft.
Dowels
CAUTION Ensure the dowels are correctly located in the upper crankcase.

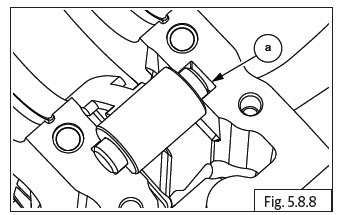

- Locate and gently press dowels (a) in the upper crankcase and ensure they are seated properly.
Timing Chain Tensioner Pad

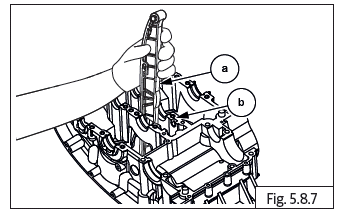

- Position timing chain tensioner pad (a) in upper crankcase (b) with its rubber pad towards the cylinder barrel seating area.
- Ensure the lock pegs of the chain tensioner pad are seated correctly in the slots (a) in the upper crankcase.
Crankshaft
NOTE
- Ensure journal bearings are cleaned and well lubricated.

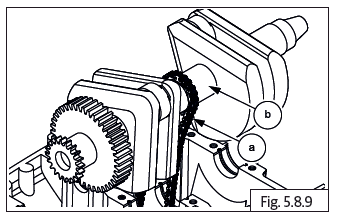

- Assemble timing chain (a) on crankshaft gear (b). Ensure it is seated properly.

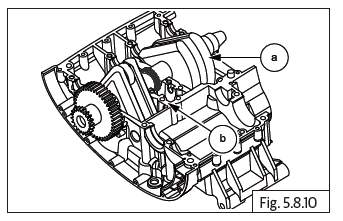

- Gently locate crankshaft (a) on crankcase (b) duly ensuring the
following:
- The timing chain is correctly routed into the cylinder barrel seating area.
- The gear on the crankshaft is on the RH side (clutch side ) of the upper crankcase.
