Kawasaki Z1000SX - Service manual > Air Switching Valve
Air Switching Valve Operation Test
- Refer to the Air Suction System Damage Inspection in the Periodic Maintenance chapter.
Air Switching Valve Unit Test
- Remove the air switching valve (see Air Switching Valve Removal in the Engine Top End chapter).

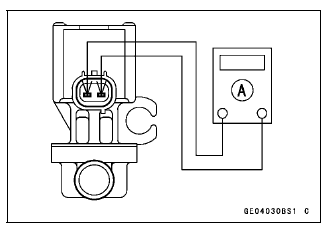

- Set the hand tester [A] to the × 1 Ω range and connect it to the air switching valve terminals as shown in the figure.
Special Tool - Hand Tester: 57001-1394
Air Switching Valve Resistance
Standard: 18 - 22 Ω at 20ºC (68ºF)If the tester does not read as specified value, replace it with a new one.

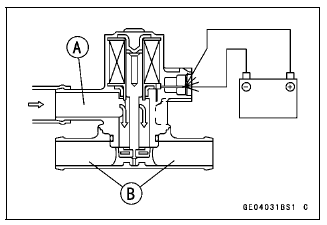

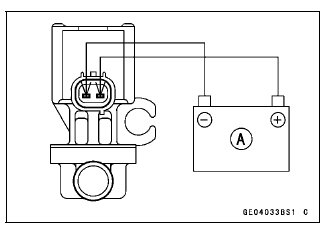

- Connect the 12 V battery [A] to the air switching valve terminals as shown in the figure.
- Blow the air to the intake air duct [A], and make sure does not flow the blown air from the outlet air duct [B].
- Disconnect the 12 V battery.

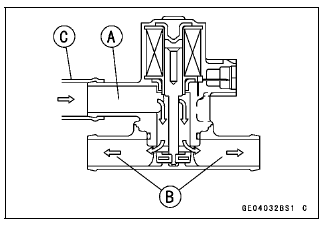

- Blow the air to the intake air duct [A] again, and make sure flow the
blown air from the outlet air duct [B].
If the air switching valve does not operate as described, replace it with a new one.
NOTE
- To check air flow through the air switching valve, just blow through the air switching valve hose (intake side) [C].

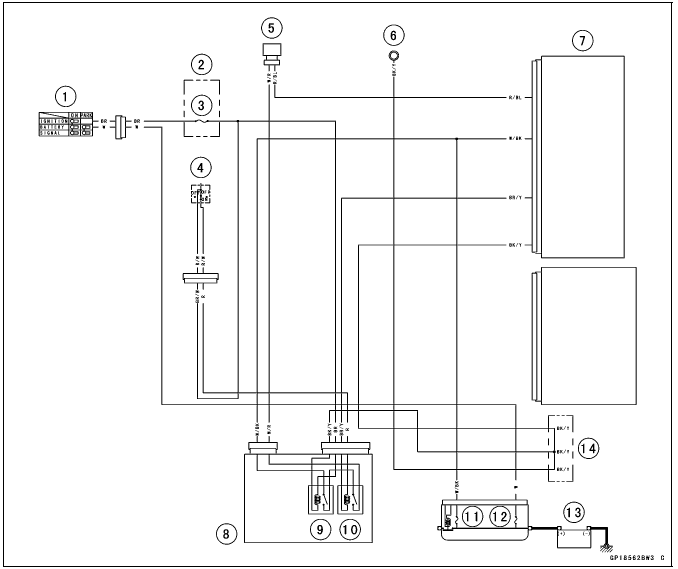

Air Switching Valve Circuit
- Ignition Switch
- Fuse Box 2
- Ignition Fuse 15 A
- Engine Stop Switch
- Air Switching Valve
- Frame Ground
- ECU
- Relay Box
- ECU Main Relay
- Fuel Pump Relay
- FI Fuse 15 A
- Main Fuse 30 A
- Battery 12 V 8 Ah
- Water-proof Joint C
